Vertical Drilling Milling Machine XQ6332 / XQ6332A / XQ6332B/ XQ6332C

Vertical Drilling Milling Machine XQ6332 / XQ6332A / XQ6332B/ XQ6332C

US$8,000.00-9,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XQ6332 / XQ6332A / XQ6332B/ XQ6332C
Object
Hardware
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1270X320mm
Main Motor
3kw
Arm Travel
450mm
Spindle Taper
R8
Transport Package
Wood Case
Specification
GS CE ISO9001 Rohs
Trademark
WELLON
Origin
China
HS Code
8459590000
Production Capacity
50 PCS/Month

Packaging & Delivery

Package Size
1900.00cm * 1700.00cm * 2350.00cm
Package Gross Weight
1800.000kg

Product Description

Product Description

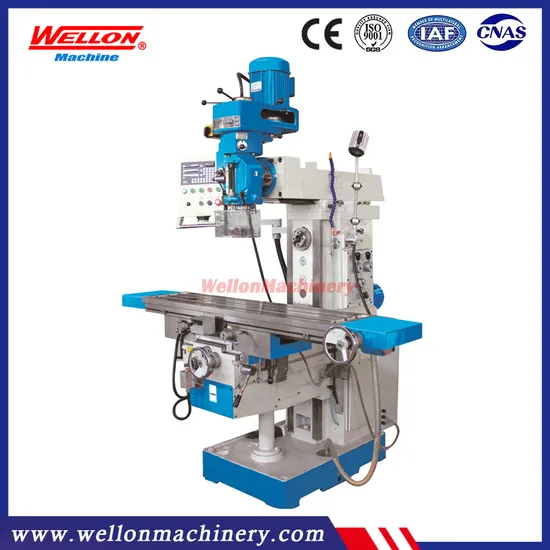

Vertical Milling Machine XQ6332 / XQ6332A / XQ6332B/ XQ6332C

Detailed Photos
Product Parameters

Performence Features: 1. Universal milling machine featuring a moveable arm and big clamping area. 2. Big dimensioned guidings in all axis guarantees absolute precision and stability. 3. Rapid feed and 8 feeds in all axis, driven by servomotor. 4. Mill table tilts from -45° to +45°, 5. Tiltable spindle head from -90° to +90° allows for various operations. 6. The machine is serially equipped with an automatic spindle feed.
Technical parameter:
Specifications Unit XQ6332 XQ6332A XQ6332B XQ6332C
Table size mm 1270X320 1370X320 1270*320 1370*320
Table travel (X/Y/Z) mm 720/300/400 820/300/400 900/380/400 1000/380/400
Rapid speed of table (X/Y/Z) mm/min 1000/1000/750
Spindle taper --- 3HP: R8 or ISO30; 5HP: ISO40
Table feed (X/Y/Z) mm/min Variable
Distance between horizontal spindle and table mm 75-475
Distance between spindle and ram mm 200
Spindle speed range r/min 65-4660 (16 steps)
35-1500 (12steps )
T-slots(No./width/pitch) mm 3/14/80
Arm travel mm 450
Main motor power --- 3HP or 5HP
3Kw
Torque of X/Y/Z axis servo motor N.m 10
Overall size cm 172×168×235 182×168×235 172×168×235 182×168×235
Net weight kg 1680 1730 1730 1780


Rotary table can be ordered at special request:
Model Table size Max table travel - X/Y/Z Max rotary angle of table Distance from spindle to table
XQ6332W 1270*320 720/300/400 ±45° 35-435
XQ6332AW 1370*320 820/300/400
XQ6332BW 1270*320 900/380/400
XQ6332CW 1370*320 1000/380/400

Standard accessories:
Drill chuck
Reduction sleeve
Collets chuck sets
Draw bar
Mill arbors
Work lamp
Coolant system
Oil tray
CE electric
Some tools
Optional accessories:
Machine Vice
Three Axis DRO
Spindle protection
58 pcs clamping kits
Dividing head
Rotary table
Variable spindle speed
Table swivel table
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
