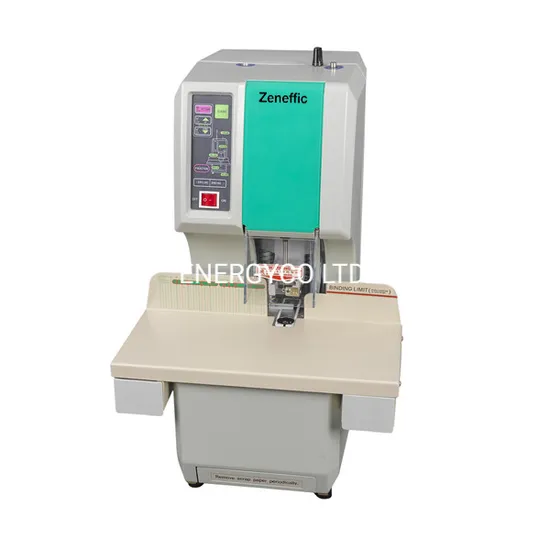

Fully Automatic Financial Book Riveting Tube Bill Binding Machine
Basic Info.
Model NO.
TR-AF50
Classification of Financial Binding Machine
Automatic
Classification of Wire Binding Machine
One Hole at a Time
Thickness
0-50mm
Binding Thickness
400 Pages Paper
Power Source
110V-220V,50-60Hz
Drill Bit Diameter
7*50mm Hollow Straight Drill
Nylon Tube Diameter
5.2*50mm
Power Consumption
350W
Binding Firmness
320n
Noise
50dB
Ambient Temperature
0-40 Degree Celsius
Ambient Humidity
60-90%H
Punching Speed
9s
Punching+Binding Speed
28s
Pre-Heat Time
3min
Table Size
440mm(Length)*200mm(Width)
Machine Size
400*575*820mm
N.W/G.W
38kg/40kg
Transport Package
Color Box with Polyfoam
Specification
50mm thickness binding
Trademark
Zeneffic
Origin
China
HS Code
84729090
Production Capacity
50000/Year
Product Description
TR-AF50 Fully Automatic Binding MachineSpecification
| Model No. | TR-AF50 Fully Automatic Binding Machine |
| Control panel | Intelligent keystroke operation |
| Punching/binding thickness | 1-50mm(400sheet of 70g A4) |
| Drill size | Φ7*50mm |
| Rivet tube size | Φ5.2*500mm |
| Punching hole diameter | 7mm |
| Pre-heat time | ≤3min |
| Punching speed | ≤9s |
| Punching + binding speed | ≤28s |
| Punching method | Automatic |
| Binding method | Automatic |
| Auto laser position | Yes |
| Error warning | Yes |
| Safety cover | Yes |
| Bin full function | Yes |
| Binding firmness | ≥320N |
| Auto energy saving | Sleep mode after adjustable 5-60min not using machine |
| Table size | 440mm(Length)*200mm(Width) |
| Machine size | 400*575*820mm |
| N.W/G.W | 38kg/40kg |
| Minimum Order | ·Small qty is accepted, even 1pc as a sample |
| ·Prices are different according to qty | |
| ·Free customized packing requires more qty | |
| Delivery time | ·Sample orders: 5-7 days |
| ·Bulk orders: 15-30 workdays after receiving the deposit |
