New Tech CE-CF Lithium Battery Equalizing Tester Battery Cell Voltage Balance Charging&Discharging Test

Product Description

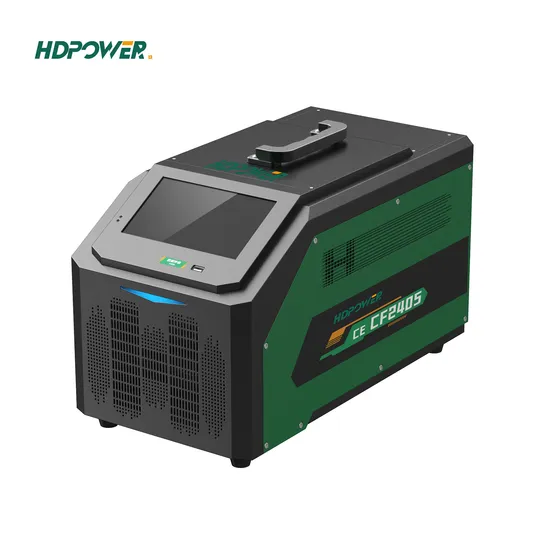

CE-CF Lithium Battery Equalizing Tester
Type:	CE-CF1205	CE-CF2405
Output Channel	1	2
Output power	≤300	≤600
Charger/Discharge Voltage	±1.5~4.35V
Output Current	0.5~5.00A
Suit Batteries	LTO / LFP / NMC
Voltage Accuracy	±5mV 0.5%
Voltage Resolution	1mV ,0.001V
Current Accuracy	±5mA 1 %
Current Resolution	0.001A
Working mode	Parallel discharge/parallel charging/equalization
Protection	Under-voltage, over-voltage, over-current, over-temperature, short-circuit, reverse connection protection
Interface	7 inch LCD screen, resolution 1024*800
Storage	Built in 16Gbit
Data Transmission	RS232,USB,CAN
Colling mode	Air cooling
Power Supply	AC90~260V 45~60Hz
Dimension(mm)	440*310*295mm
Weight(kg)	7KG	10KG

Product Profile
CE-CF Lithium Battery Equalizing Tester, is a maintenance equipment for lithium battery module.each channel can independently carry out charging maintenance, discharging maintenance and equalization maintenance.
It can quickly solve the problem of lithium battery cell voltage imbalance,cell pressure difference.can be widely used in hydro, thermal, wind and solar power stations and other energy storage power systems, as well as electric tools, electric bicycles, electric motorcycles, electric vehicles, aerospace and other new energy fields
Product features
1.Applicable to different lithium battery voltage, such as LTO / LFP / NMC
2.Three working modes are available, charging, discharging and equalizing mode.
3. Each channel is independent operation, the maximum equalization of 48 channels of batteries
4.16G large memory, data export support
5. Lightweight and portable, simple operation, one-key equalization
