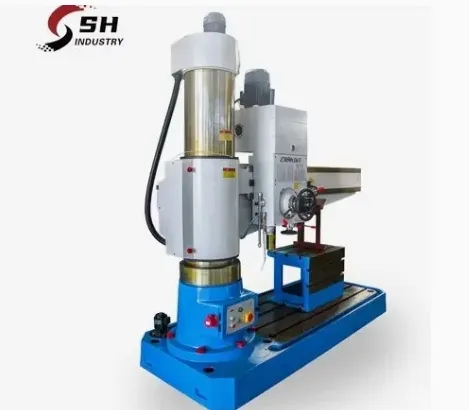

High Quality Universal Mechanical Radial Drilling Machine Zq3050X16 Radial Drilling Machine for Sale
| US$5,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZQ3050X16
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
High Quality Universal Mechanical Radial Drilling
Maximum Drilling Diameter (mm)
50
Spindle Travel (mm)
210
Spindle Cone (Mt)
5
Spindle Speed Step
6
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8459290000
Packaging & Delivery
Package Size
217.00cm * 95.00cm * 245.00cm
Package Gross Weight
2500.000kg
Product Description
High Quality Universal Mechanical Radial Drilling Machine ZQ3050X16 Radial Drilling Machine for SaleProduct Description
The main performance characteristics:
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed
Product main technical specifications:
| SPECIFICATIONS | ZQ3050×16 |
| Max.drilling dia (mm) | 50 |
| Distance from spindle axis and column surface(mm) | 260-1150 |
| Distance between spindle axis and column surface (mm) | 360-1600 |
| Spindle travel (mm) | 210 |
| Spindle cone(MT) | 5 |
| Spindle speeds range (r.p.m) | 78, 135,240,350,590,1100 |
| Spindle speed step | 6 |
| Spindle feeding range(r.p.m) | 0.10-0.56 |
| Spindle feeding step | 6 |
| Rocker rotary angle (°) | ±90° |
| Main motor power (kw) | 4 |
| Movements motor power (kw) | 1.5 |
| Weight (kg) | 2500 |
| Overall dimensions (mm) | 2170×950×2450 |
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
