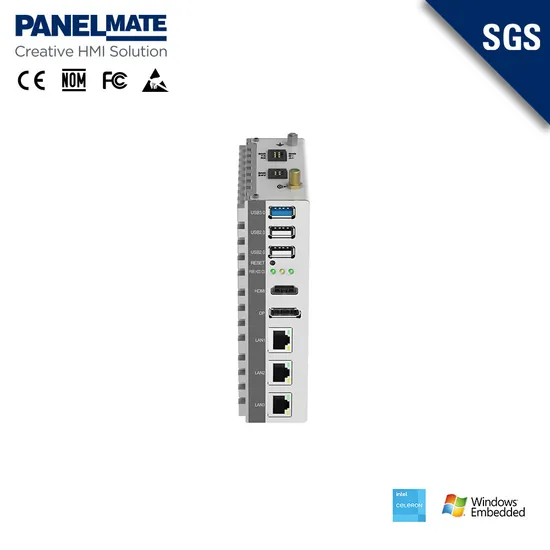

Customized Fanless Industrial Box PC Intel J6412 8g USB HD Mi Dp Ports Ethercat Codesys Mini Box PC
Basic Info.
Model NO.
PC6012
CPU Type
Intel Celeron J6412
Hard Disk Rack Type
Partition
Operating Temperature
-20℃ to 60℃
RAM
8GB
Screen Size
Customized
Storage Capacity
128GB SSD
System Expansion Slot
Mini PCIe
Touch Screen
Customized
Type
IPC
CPU
Intel Celeron J6412
Frequency
Quad Core 2.60GHz
Storage
128g
Network
Intel I210 Gbe LAN/Intel I226-V Gbe LAN
USB
USB3.0 / USB2.0
Pilot Lamp
Power Light/HDD Light/Status Light
Voltage
DC 9~36V,4 Pin Terminal
Interface
HDMI / Dp
OS
Windows 10 / Linux / etc
Dimension(mm)
140 X 40.6 X 104
Power
25W
Mounting
DIN Rail
Transport Package
Individual Carton Packing with Waterproof Film
Specification
30x20x10cm/G. W. 1kg
Trademark
Panelmate
Origin
China
HS Code
8471414000
Production Capacity
99999
Packaging & Delivery
Package Size
30.00cm * 20.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
· Compactaluminium-magnesium alloy profile housing, Large aluminium fins design to ensure the reliability and heat dissipation
· Din rail mounting
· 3 xUSB,1 XRS485 +1x RS232
· Support EtherCAT protoco!
· Intel* celeron* |6412 and intel* celeron*j1900 processor optional
· Extendable WlFl/4G
· Fanless,operatingtemperature -20~70°C
· DC 9~36V
