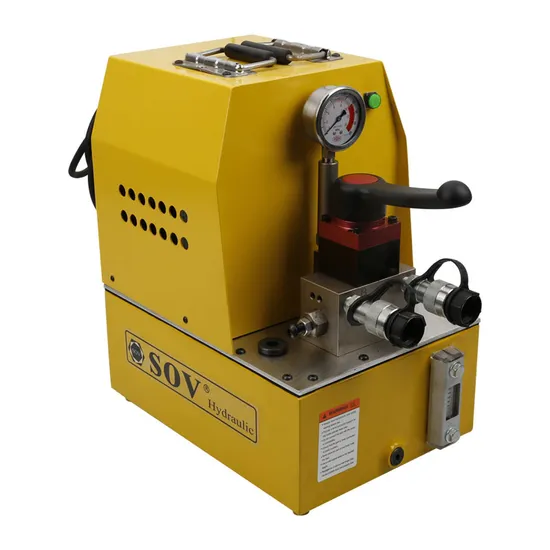

2 L/Min Electric Hydraulic Pump

Product Description

2 L/min Electric Hydraulic Pump For Hydraulic Jack
Specifications:
Max pressure: 700bar
Oil capacity: 10-100L
Mode of operation: Manual valve /Solenoid valve
Working presure: 700Bar
Elevtric Driven Hydraulic Pump Electric pumps Equipment retal
Electric pump used with cylinders
High pressure electric pumps
The pump can be matched with both double acting and single acting cylinders. Choosing the solenoid valve electric hydraulic pump,remote operation can be realized.Internal high and low pressure automatic reversing valve and external adjustable pressure valve to make it easy to calibrate the working pressure and avoid the over load. Motor starter has the function of preventing overload, overheat and leakage.Features * Electric hydraulic pumps are pray coating, anti-corrosion, pollution-resistant* durable Lightweight and compact design make it easy to be moved.* Double speed pump design, with the high flow in low pressure.* The actuator can be fast moved on no-load status. Parameter

Model	Working Pressure (Mpa)	Type	Valve type	Oil Tank capacity (L)	Motor Power (kw)	Flow (L/min)	Voltage
SOV-SSB-55	70	Double Acting	Manual valve	10	0.55	0.4	220V/50Hz
SOV-SDB-55	70	Double Acting	Solenoid Valve	10	0.55	0.4	220V/50Hz
SOV-DSB-75	70	Single Acting	Manual Valve	16	0.75	1	380V/50Hz
SOV-SSB-75	70	Double Acting	Manual valve	16	0.75	1	380V/50Hz
SOV-SDB-75	70	Double Acting	Solenoid Valve	16	0.75	1	380V/50Hz
SOV-SSB-110	70	Double Acting	Manual valve	16	1.1	1	220V/50Hz
SOV-SDB-110	70	Double Acting	Solenoid Valve	16	1.1	1	220V/50Hz
SOV-DSB-220	70	Single Acting	Manual Valve	32	2.2	2	380V/50Hz
SOV-SSB-220	70	Double Acting	Manual valve	32	2.2	2	380V/50Hz
SOV-SDB-220	70	Double Acting	Solenoid Valve	32	2.2	2	380V/50Hz
SOV-SSB-550	70	Double Acting	Manual valve	70	5.5	4.5	380V/50Hz
SOV-SDB-550	70	Double Acting	Solenoid Valve	70	5.5	4.5	380V/50Hz
SOV-SSB-750	70	Double Acting	Manual valve	100	7.5	6	380V/50Hz
SOV-SDB-750	70	Double Acting	Solenoid Valve	100	7.5	6	380V/50Hz

Photos
Features:
SOV high pressure electric pumps feature high-efficiency pump design- higher oil flow and by-pass pressure
High-strength, moulded electrical box protects electronics, power supplies and LCD readout and stands up to harsh industrial environments
IP54 protection and isolation class
Totally enclosed, fan-cooled industrial electric motors for extended life
User adjustable relief valve built-in on manual and solenoid valves.
Steel fan guard on all electric motors
Full sight oil level glass
40 micron filter breather with splash guard
Durable steel reservoirs.
Back-lit LCD provides self test, diagnostic and read-out capabilities never before offered on an industrial pump (included on pump with electric valves, optional on other electric pump models)
Packaging Details
1. Outside packaging: Standard export wooden packing;
2. Customized packaging acceptable.
Shipping
1. Small quantity: By international exress, such as DHL, TNT, FedEx, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.
Our Service
1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.
Company Information
SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.
Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
