8 Ton Lifting Crawler Crane Spidercrane Foldable Telescopic Construction Spider Crane Price

Product Description

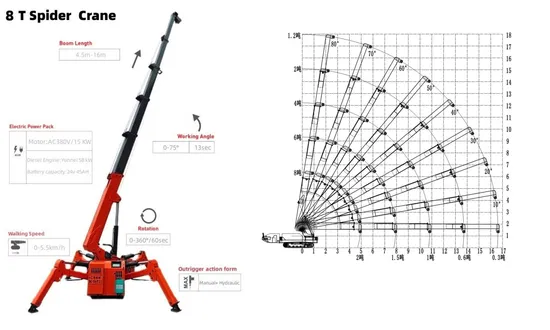

Product Description 8TON SPIDER CRANE
1. Full hydraulic transmission, electromechanical dual use, high efficiency, low labor intensity, safe and reliable work
2. Each hydraulic system is equipped with a balance valve and hydraulic lock for higher safety performance
3. The boom and important structural parts are made of special steel plates, which can reduce the dead weight of Marine crane and improve its performance
4. The slewing bearing part is made of 50 manganese forging material with inner tooth turntable 5. Cold work molding, 8 - prism structure, give full play to the mechanical properties of the material 6. Boom adopts hydraulic cylinder telescopic, more safe and reliable work 7. Night lights were installed to extend the working hours 8. Optional cab, negative arm and three-phase operation 9. Hydraulic oil pipe rubber pipe adopts double wire ultra-high pressure oil pipe, steel pipe adopts electroplating treatment

Max. operating radius		16m×0.2t
Maximum ground lift		17mX0.9t
Winding plant	Lifting speed of the hook	0-10m/min
	Specification of wire rope	Φ11mm×80m
Retractor device	Boom form	5sections of boom
	Boom length	4.5m-16m
Rise and fall	Boom Angle/time	0-75°/13sec
Gyratory device	Turn Angle/speed	0-360°(continuous)/60sec
Supporting leg	Leg movement form	Manual+ Oil pressure automatic support
	Maximum extension amplitude (mm)	6400(L)X6100(A),5300(F)
Running gear	Moving way	Hydraulic motor drive,two speed
	Walking speed	0-5.5km/h
	Gradeability	20°(36%)
Motor	Voltage	AC380V
Engine	Producers	Yun nei
	Type/displacement	YN27GBZ/2.7L
	Starting mode	Electrical starting
	Starting performance	-5°C~40°C
	Fuel/volume	Diesel/45L
	Battery capacity	24v 45AH
	Fuel consumption rate	230g/kW-h
	Noise level	Rated revolution≤81.5dBA (1m)
Operating system	Type of Operation (Boom/leg)	Manual operation, manual walking + (remote control need optional)
Standard configuration	Diesel engine and motor (dual power)
Dimension	4950*1560*2235mm
Workmanship		Baking paint assembly process

Detailed Photos
Packaging & Shipping
Company Profile
FAQ
1. who are we?
We are based in Shandong, China, start from 2018,sell to Africa(45.00%),Southeast Asia(30.00%),Domestic Market(10.00%),South Asia(5.00%),North America(5.00%),South America(1.00%),Central America(1.00%),Western Europe(1.00%),Oceania(1.00%),Eastern Europe(1.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Mixer truck,Suction-type sewer scavenger,Vacuum sweeper,Concrete pump truck,Hydraulic aerial cage
4. why should you buy from us not from other suppliers?
Technology research and development, production and sales integration
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,JPY,AUD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
