Universal Radial Drilling Machine Z3032X7p Z3032X7
| US$1,200.00-1,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3032X7P Z3032X7
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Drilling Capacity
32 mm
Diameter of Column
150mm
Transport Package
Wood Case
Specification
CE ISO900 rohs
Trademark
L& T
Origin
Tengzhou China
HS Code
84592900
Production Capacity
100 PC/Month
Product Description

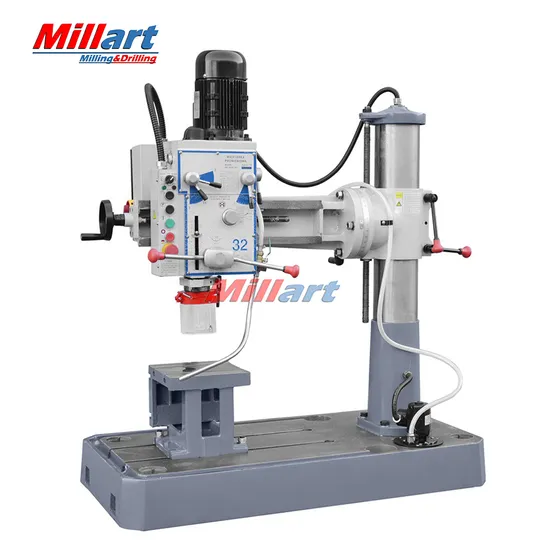

Universal Radial Drilling Machine Z3032X7P Z3032X7Features:
With wide range of speed, with manual-power feed. The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted± 45° , it reliable and easy job can be done.
Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
The machine with small appearance and much function, the machine are widely used for drilling, counter boring, reaming, tapping etc
Technical parameter:
| Model | Z3032×7P | Z3032×7 |
| Max. Drilling capacity(mm) | 32 | 32 |
| Max. Tapping capacity(mm) | Cost lron20 Steel16 | Cast lron 20 Steel16 |
| Distance spindle axis to column generating line | 300~700 | 300~700 |
| Diameter of column(mm) | 150 | 150 |
| Spindle taper | MT3 | MT3 |
| Spindle travel | 130 | 130 |
| Spindle speeds range(mm) | 100~1600 | 100~1600 |
| Spindle speeds series | 8 | 8 |
| Spindle feeds(r/min) | 0.08\0.14\0.23 | 0.08\0.14\0.23 |
| Rotary angle of rocker in hirizontal plane( °) | 360 | 360 |
| Distance between spindle nose to working surface of base(mm) | 275~680 | 275~680 |
| Dimension of worktable(mm) | 250×250×250 | 250×250×250 |
| Diameter of base(mm) | 1200×625×155 | 1050×550×120 |
| Overall size(mm) | 1235×625×1230 | 1235×550×1195 |
| Motor(w) | 750 or 1100 | 750 or 1100 |
| G.W./N.W.(Kg) | 580/500 | 390/310 |
| Packing dimension(cm) | 127×69×137 | 122×62×128 |
