Marine Floating Pneumatic Dock Yokohama Boat Rubber Fender with Chain and Tire Net for Ship-to-Ship and Ship-to-Port ISO 17357

Product Description

2025 Marine Floating Pneumatic Dock Yokohama Boat Rubber Fender With Chain and Tire Net for Ship-to-Ship and Ship-to-Port ISO 17357
Product Description
Yokohama Type Pneumatic Rubber Fenders
AGI-RUBBER is China leading manufacturer of Pneumatic Rubber Fengers.The floating pneumatic rubber fenders have sometimes been colloquially referred to as "Yokohama Fenders" or "Yokohama type fenders" - ISO 17357:2014 Ships and marine technology - High-pressure floating pneumatic rubber fenders.
AGI-RUBBER Pneumatic rubber fender (for ship use) uses compressed-air as medium to absorb the energy from impact. The sides of ships are softer when berthing, so the result of collision-avoiding is achieved.
Marine Yokohama Pneumatic Rubber Fender are available from 500X1000mm to 4500X12000mm with 50kPa (pneumatic 50) and 80kPa (pneumatic 80) initial pressure, including all the standard and no-standard specifications.
Product Parameters
Model of "Yokohama Fenders" or "Yokohama type fenders"

Size Diameter *Length (m)	Initial pressure:0.05Mpa			Initial pressure:0.08Mpa
	Weight	Reaction Force(KN)	GEA(KJ)	Weight	Reaction Force(KN)	GEA(KJ)
0.5x1.0	25	67	6	25	85	8
0.6x1.0	32	74	8	32	98	11
0.7x1.5	50	137	17	50	180	24
1.0x1.5	80	182	32	80	239	45
1.0x2.0	100	257	45	125	338	63
1.2x2.0	120	297	63	165	390	88
1.35x2.5	165	427	102	226	561	142
1.5x3.0	315	579	153	370	761	214
1.7x3.0	405	639	191	436	840	287
2.0x3.5	590	875	308	632	1150	430
2.5x4.0	1050	1381	663	1110	1815	925
2.5x5.5	1333	2019	943	1410	2653	1317
3.0x5.0	1880	2000	1050	2155	2709	1571
3.0x6.0	2160	2488	1312	2470	3292	1888
3.3x4.5	2020	1884	1175	2300	2476	1640
3.3x6.0	2300	2783	1675	2600	3652	2338
3.3x6.5	2700	3015	1814	3080	3961	2532
3.3x10.6	4403	5257	3067	5020	6907	4281
4.5x9.0	6554	5747	4752	7470	7551	6633
4.5x12	8739	7984	6473	9960	10490	9037

Installation Instructions
Installation Of Rubber Fender
how to pneumatic fender

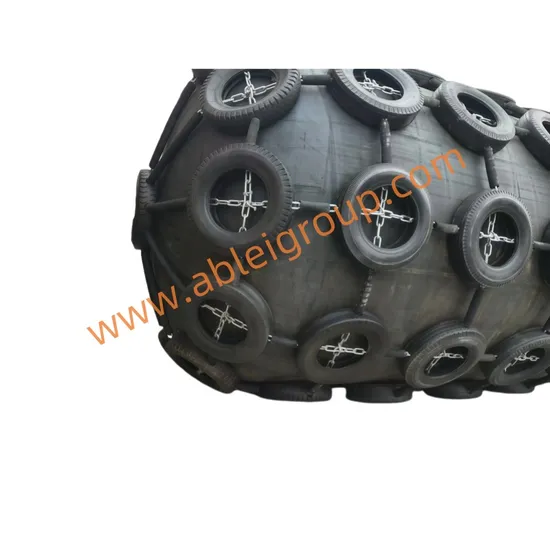

Net Type Pneumatic Rubber Fender
How Choose the marine pneumatic fenders for medium and small ships,large ships.

Boat ton(T)	Size:D*L(m)	Type of boats
50	0.5*1.0	Fishing boat
100	0.7*1.5~1.0*1.5	Fishing boat
200	1.0*1.5~1.2*2.0	Fishing boat,Tugboat
300-500	1.2*2.0~1.5*2.5	Fishing boat,Tugboat
1000	1.5*2.5~1.5*3.0	Tugboat,Transport ship
3000	2.0*3.0~2.0*3.5	Distant water trawler,Transport ship
10000	2.0*3.5~2.5*4.0	Transport ship

How Choose the marine pneumatic fenders for large ships.

Boat to(DWT)	Supposed speed of ship to dock(M/S)	Effective sport energy (KN.M)	Fender size:D*L(m)
200000	0.15	1890	3.3*6.5
150000	0.15	1417	3.3*6.5
100000	0.15	945	2.5*5.0
85000	0.17	1031	3.0*6.0
50000	0.18	680	2.5*5.5
40000	0.20	672	2.5*5.5
30000	0.22	609	2.5*4.0
20000	0.25	525	2.5*4.0
15000	0.26	425	2.5*4.0

Packaging & Shipping
Related Products
Ribbed Type Pneumatic Rubber FenderFAQ
1."What kind of certificate can you get for pneumatic fenders?"
--CCS, BV,DNV etc. Certificate(any IACS Class you want) is available .
2.MOQ of fender "I only need one. Can you produce it?"
--If you need 1 sample,our team also can provide it for you.
3.how to choose the size of boat dock fender --We have more than 18 years' experience. You just tell us information of your ship, our team can suggest suitable boat dock fender size and quantity for you.
4.Can you support the OEM/OEM --Sure,we can support all as your requirement details.
5.How about your "After-sales service" --Usually the warranty period:24 months,if any assistance,welcome to back our team any time.
Why Choose Us
AGI Marine pneumatic fenders are the strongest,best built and most reliable untis in their class.
A versatile and well proven design, AGI Marine pneumatic fenders are available as sling type or with chain & tire nets to suit a variety of inshore and offshore applications.
.ISO 17357 certified
.BV CCS ABS etc Certificate
.Warranty Period 24 months
.With repair tools
.Provide Technical service
.Guaranteed energy absorption Low hull pressures
.Chain tire net and Sling type Thick skin construction
.Good angular performance Contact us
AGI Boat dock fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms.
