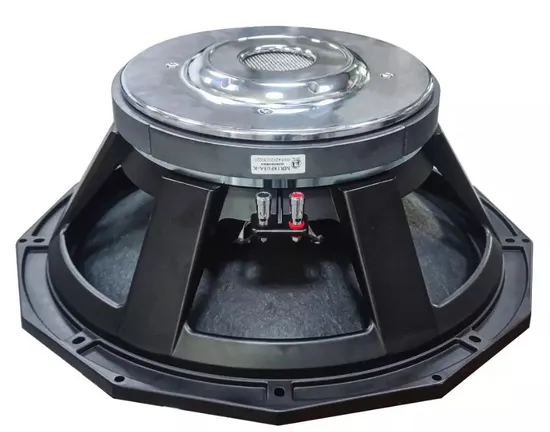

18 Inch Chrome Plate Woofer Speaker Professional 18′′ Low Range Woofer Driver
| US$1.00-100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MR18F03A-K
Activity
Passive
Operation Mode
Wire / Remote Control
Application
Commercial
Certification
CE, RoHS
THD
<0.03%
Nominal Diameter
488mm/18inch
Nominal Impedance
8ohms
AES Power Handing
1200W (AES)
Max Power Input
2400W (AES)
Sensitivity 1W/1m
96dB
Frequency Range
45-2kHz
Voice Coil Diameter
125.1mm/4.9inch
Magnet
280 Ferrite Ring
Plate
Chrome
Frame/Basket
Aluminium
Transport Package
Carton or as Your Requirement
Specification
17.55kg/pcs
Trademark
MERRY AUDIO
Origin
China
HS Code
85182900
Production Capacity
8000 PCS/Day
Product Description
18 inch Chrome plate woofer speaker professional 18'' low range woofer driver Product Parameters| Specification | |||||
| Model:MR18F03A-K | |||||
| General Specifications | |||||
| Nominal Diameter | 488mm/18inch | ||||
| Nominal Impedance | 8Ω | ||||
| AES Power Handing | 1200W (AES) | ||||
| Maximum Power | 2400W | ||||
| Sensitivity 1W/1M | 96dB | ||||
| Frequency Range | 45-2kHZ | ||||
| Voice Coil Diameter | 125.1mm/4.9 inch | ||||
| Windinig Material | Copper | ||||
| Former Material | Aluminium | ||||
| Winding Depth | 26.1mm | ||||
| surround material | Polycotton | ||||
| surround Design | M-roll | ||||
| Magnet | Φ280 | Ferrite Ring | |||
| Thiele & Small Parameters | |||||
| Resonance Frequency | Fs | 46Hz | |||
| DC Resistance | Re | 5.36Ω | |||
| Mechanical Factor | Qms | 4.426 | |||
| Electrical Factor | Qes | 0.507 | |||
| Total Factor | Qts | 0.455 | |||
| BL Factor | BL | 28.99T.m | |||
| Effective Moving Mass | Mms | 276g | |||
| Compliance | Cms | 44uM/N | |||
| Equivalent Cas Air Load | Vas | 92.6L | |||
| Effettive Piston Area | Sd | 1237.86cm² | |||
| η(Eta Zero) | η0 | 1.69% | |||
| Mountiong & Shipping Information | |||||
| Overall Diameter | 488mm | ||||
| Bolt circle diameter | 470mm | ||||
| Baffle Cutout Diameter | 422mm | ||||
| Depth | 189mm | ||||
| Net Weight | 17.55KG | ||||
Packaging & Shipping Packaging :
Common carton that protect speaker from damage, or as your OEM requirements.
Shipping:
Express/ Airlift / FCL(Full Container Load) or LCL, FOB / EXW / CIF or CNF. Our sales team are capable enough
to arrange the shipment if you want.
