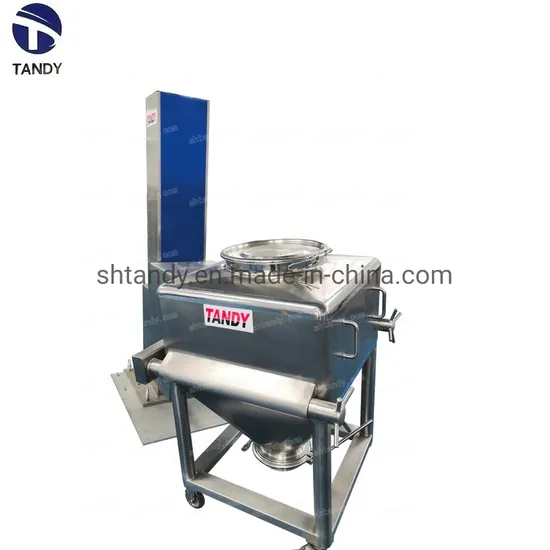

Single Column Lifting Blender Rotation Hopper Mixer Machine

Product Description

Single Column Lifting Blender Rotation Hopper Mixer Machine Main Technical Data

Model No.	Max bin volume(L)	Max Working Volume(L)	Turning Speed(rpm)	Total Power(KW)	Length(mm)	Total Weight(KG)
TPB-100	100	80	3-20	2.2	2300*1500*2000	600
TPB-300	300	240	3-20	3	2500*1900*2000	1000
TPB-600	600	480	3-15	4.4	2800*2300*2500	1500
TPB-800	800	640	3-15	6.2	3000*2600*2500	1800
TPB-1000	1000	800	3-10	6.2	3250*2750*2800	2000
TPB-1500	1500	1200	3-10	6.2	3300*2800*2800	2200
Please feel free to contact us if you need more technical parameters !

FAQ 1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Europe, American, Australia, Asia, Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Product Description
The machine is composed of colunm, machine base, rotation crotch, driving system, braking system , control system, etc. Push the mixing hopper into the rotation crotch and lock the nuts. Start the control system to lift the hopper to the mixing height and postition it reliably. The driving system will carry out automatic mixing according to the set time, rotation speed and other data. After the mixing operation is finished, the rotation crotch will stop vertically, the hopper will be printed. Loosen the locknuts of the ratary crotch and push the hopper out and transfer it to the next process. Main Features 1. The machine has such features as resonable structure, stable performance, convenient operation, no dead corners, and no exposed bolts.
2.The gyrator (mixing hopper ) forms an included angle of 30 with the rotation axis. The materials in the mixing hopper rotate along with the gyrator and make tangential movement and achieving the best mixing effect.
3.PLC automatic control is adopted . it is provided with the infrared safety device and the discharging butterfly valve with the misoperation preventer to ensure safe production.
