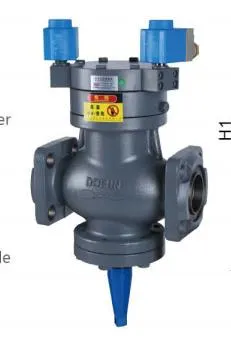

High Performance Electric Control Valve for Industrial Applications
| US$272.00-530.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DGSV & DGSV-2C & DEVSC(copper) & DEVS(steel)
Material
Cast Iron & Steel & Brass
Pressure
2.8MPa
Power Supply
AC Solenoid & DC Solenoid
Nominal Diameter
DN25-DN65
Pressure Adjustment Range
a : 0-10.3 Bar, D : 5.2-19.3 Bar
Nomial Pressure
2.8 MPa
Transport Package
Carton Box or Plywood Box Packaging
Specification
30.00cm * 20.00cm * 20.00cm
Trademark
Dofun & AMG
Origin
China
HS Code
8481804090
Production Capacity
150000 Set
Product Description
Basic Info.Production Dimensions
Order Illustration Pls tell us the Model, set pressure value and pressue adjustment range you want when ordering.
Product Description
| Ammonia ,Freon,CO2 System Refrigeration Valve | |||||
| Valve Name | Model | Nominal Diameter | Nominal Pressure | Applicable Temperature | Applicable Medium |
| Stop Valve | SVD | DN15 - DN300 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | R12, R22, R502, R134a, R404a, R507, R717 CO2,and etc. |
| Check Valve | CVD | DN15 - DN150 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Stop Check Valve | SCV | DN15 - DN150 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Regulating Valve | TVD | DN15 - DN125 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Filter | FVD | DN15 - DN150 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Overflow Valve | OFD | DN20,DN25 | Pressure Adjustment Range: 2-6.5bar 3.5-8bar | -50ºC~+150ºC | |
| Liquid Level Switch | LS50 | DN20,DN25 | 2.8MPa | -50ºC~+65ºC | |
| Inlet Pressure Regulating Valve | IPRV | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Inlet Pressure Regulating Valve(Solenoid Forced Close) | IPRV-1C | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Inlet Pressure Regulating Valve(Solenoid Forced Open) | IPRV-1N | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Outlet Pressure Regulating Valve | OPRV | DN25-DN65 | 2.8MPa | -50ºC~+120ºC | |
| Differential Pressure Regulating Valve | DPAV | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Differential Pressure Regulating Valve(Solenoid Forced Open) | DPAV-1N | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Neck Flange Check Valve | NRVD | DN25-DN150 | 2.5MPa | -50ºC~+150ºC | |
| Solenoid Valve | DEVSC/ DEVS | DN3-DN50 | 2.5MPa | -40ºC~+105ºC | |
| Motor Valve | DFMV | DN20-DN125 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Pneumatic Solenoid Valve | DGPV | DN40-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Two-Step Open Solenoid Valve(Normally Close) | DGPV-2C | DN40-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Two-Step Open Solenoid Valve(Normally Open) | DGPV-2N | DN40-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Valve Station | DFCV | 4.0Mpa | -50ºC~+150ºC | ||
| Small Stop Valve | SVS | DN6,DN10 | 4.0Mpa | -50ºC~+150ºC | |
| Gauge Valve Series | SVA | DN6,DN10 | 4.0Mpa | -50ºC~+150ºC | |
| Motor Ball Valve | DBVD | DN25-DN150 | 4.0Mpa | -50ºC~+150ºC | |
| Cartridge Filter | CFVD | DN15-DN80 | 2.5MPa | -50ºC~+150ºC | |
| Double Stop Valve | DSVD | DSV1: DN25 | 4.0Mpa | -50ºC~+150ºC | |
| DSV2:DN20,DN25,DN32 | |||||
