Ruihang Manufacturing HDPE Large Diameter Hollow Wall Winding Pipe Production Line

Product Description

Product Description
Production line composition:
Extruder, mold, winding machine and molding mold, melt extruder, vacuum sizing system, spray water tank, cutting machine, unloading platform and production control system.
Main features of the production line:
1. The extruder has the advantages of high plasticization rate, uniform melt, continuous production stability, etc. High-performance gearbox reducer. High torque, long service life, low noise.
2. Surface nitriding, after nitriding, the product has excellent wear resistance, fatigue resistance, corrosion resistance, high temperature resistance, and a long working life.
3. All parts are from well-known domestic and foreign brands.
Features and applications of the products produced:
The pipe has a large surface area, forming the same compression resistance as the pipe soil. The welding effect is good, and the tensile strength of the seam is enhanced. The internal rib structure is conducive to improving the stability of the ring stiffness.
Corrosive sewage pipes in seawater, industry, chemical plants, pharmaceutical factories and other industries;
Old city reconstruction, rainwater and sewage diversion projects, sewage treatment plants, garbage treatment plants Drainage;
Municipal, construction engineering buried drainage, power plants and other large-scale projects;
Agricultural irrigation and drainage; Product Parameters

Model	Diameter	Extruder		Total Power	Maximum output	Production line size L*W*H(m)
		Model	Motor
SKRG600	φ200-φ600mm	SJ65x30	37kw	92kw	180kg/h	15x15x2.5
		SJ45x30	11kw
SKRG1200	φ400-φ1200mm	SJ90x30	75kw	180kw	400kg/h	25x18x2.5
		SJ65x30	37kw
SKRG1500	φ400-φ1500mm	SJ90x30	75kw	188kw	400kg/h	25x18x3
		SJ65x30	37kw
SKRG2000	φ800-φ2000mm	SJ90x33	132kw	290kw	650kg/h	30x25x3.5
		SJ90x30	75kw
SKRG3000	φ1500-φ3000mm	SJ90x33	132kw	300kw	650kg/h	32x28x4

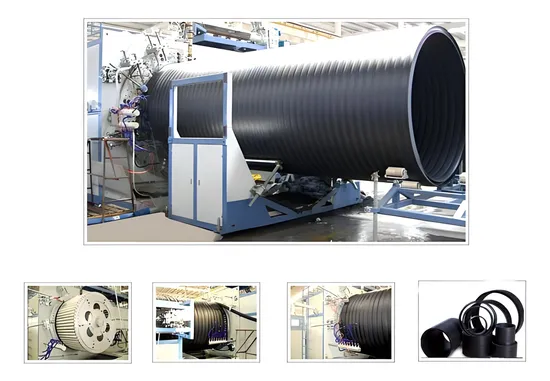

Detailed Photos
