Tool Coating PVD Nano Coating Machine for Turning Milling Drilling Reaming and Gear Cutting

Product Description

EQUIPMENT BRIEF

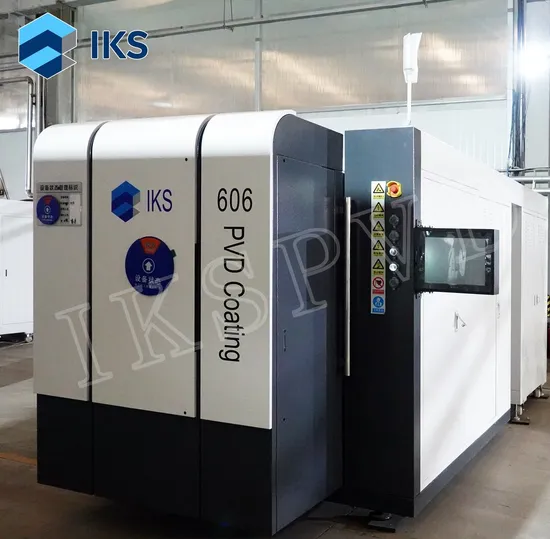

ZY-606 Standard Version Coating Machine is independent research and development of super hard coating ion coating machine by IKS, Adopt unique new filter arc source coating technology, IET etch-assisted coating technology, The route and distribution of plasma in the chamber are planned, Enhance the etching effect, improve the ionization rate, so that the surface of the target is evenly etched, The coating surface is smooth and dense while optimizing the adhesion of the coating, ensure the coating thickness and coating uniformity. At the same time,the application of new technology improves the coating efficiency, saves energy consumption and operation cost.
EQUIPMENT ADVANTAGE
1.Save space: the overall layout of the equipment is reasonable, save space, easy to disassemble, maintenance and transportation management;
2.Save power: reasonable configuration between the systems, so that the working power is lower, more energy saving;
3,Save time:modular design, stamdardized process, save installation and training time;
4,Save worry: Automatic coating system, touch screen operation is simple, storage data, abnormal alarm, valve interlock, etc.
EQUIPMENT PARAMETERS

00Chamber Size 0	Octagonal 1180×H1000mm	00Effective Space	Φ800×H600mm
00Applied Technology 0	IET+BIG ARC	00Quantity of Target Material	Φ160mm x (2+9)
00Standard Coating 00	TiN, AlCrN, etc	00Other Composite Coating 00	CrAlSiN, TiSiN, etc
00Production Cycle 00	5-7hours/batch	00Overall Dimension	L4200×W2500×H2100mm
00Loading Capacity 00	12 Pcs x Φ150mm	00Standard Load 00	500KG
00Rang of Application	00Suitable for hob,rod milling cutter,inserts,saw blade,mold,etc. 00

APPLICATION
WORK SHOP
IKS PVD Company is committed to providing vacuum coating solutions, vacuum coating machines, various vacuum componets and one-stop vacuum coating services. At the same time, the company also has a strong technical team to provide customers with vacuum equipment core technical support and excellent after-sales service. Please contact us for more details on coating machine configurations and quotations, Thank you!
