New Design Rubber Kneader Machine Oversea Service

Product Description

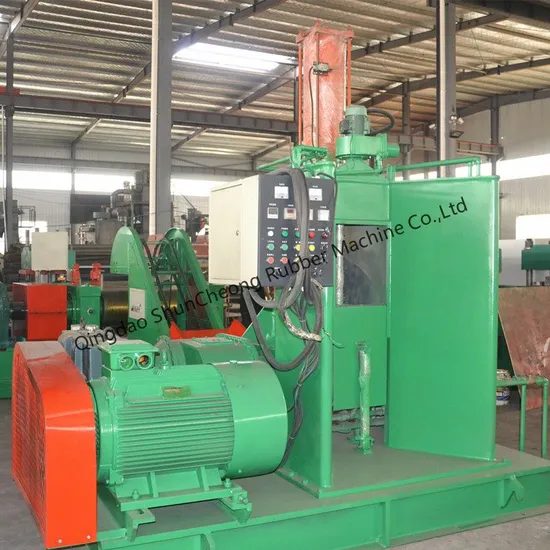

New Design Rubber Kneader Machine Oversea Service
Application:
This Rubber Mixer is mainly used for plasticizing and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials.
Features:
1. With completely condition, materials are mixed or plasticizing under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent quality
2. Spiral angle and over lapping length of blades of the rotors are of reasonable design and make the materials to be dispersed uniformly
3. Rubber Mixer surface where is contacted with the materials are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant
4. Jacket construction is adopted in rubber kneader parts that surfaces contact with materials to achieve excellent water-cooling or steam heating effect and fit in with the needs of plastics and rubber processing technology.
Parameter:

Model	X(S)N- 3x32	X(S)N- 5x32	X(S)N- 10x32	X(S)N- 20x32	X(S)N- 25x32	X(S)N- 35x30	X(S)N- 55x30	X(S)N- 75x30	X(S)N- 110x30	X(S)N- 150x30	X(S)N- 200x30
Total Volume Of Mixing Chamber(L)	8	15	25	45	55	75	125	170	250	325	440
Working Volume Of Mixing Chamer(L)	3	5	10	20	25	35	55	75	110	150	200
Driving Motor Power(KW)	5.5	11	22	37	37	55	75	110	185	220	280
Tilting Motor Power(KW)	0.55	1.1	1.1	1.5	1.5	2.2	2.2	4	5.5	11	11
Tilting Angle(°)	140	140	140	140	140	140	140	140	140	135	135
Rotating Speed of Rotor(Front/Rear) (r/min)	32/24.5	32/23.5	32/25	32/27	32/24.5	30/24.5	32/24.5	32/24.5	32/24.5	30/24.5	30/24.5
Pressure of Cooling Water(MPA)	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Overall Dimension (LxWxH)(mm)	2000x 1000x 2220	1850x 1200x 2280	2450x 1650x 2350	2675x 1650x 2560	2675x 1650x 2560	3200x 1900x 2950	3230x 1927x 2958	3325x 2615x 3105	4075x 2712x 3580	4250x 2750x 4106	4250x 3400x 4215
Gross Weight(T)	~2	~2.1	~2.1	~4	~4.5	~6.3	~7.1	~9.5	~14.9	~19.5	~22.5

Packaging:
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
FAQ:

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.

5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.

Our Services

♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.
