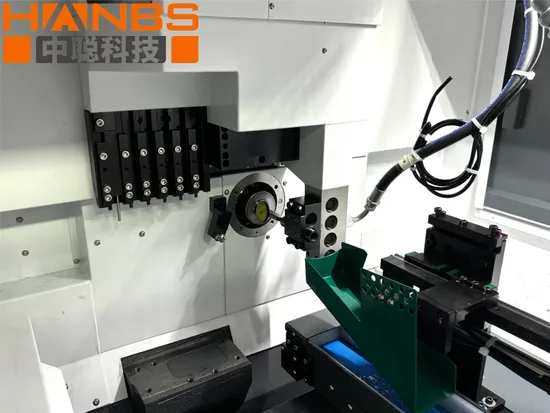

Hanbs Meticulous and Elaborated CNC Lathe HS-320
| US$40,100.00-40,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HS-320
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Program Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Optional System
Fanuc
Spindle
Single Spindle
Transport Package
Wood
Specification
2250X1200X1850mm
Trademark
HANBS
Origin
China
Production Capacity
40sets/Month
Product Description
| Project | ||
| Processing references | Maximum machining | Φ20mm |
| Maximum machining length | 190mm | |
| Maximum axial bore diameter | Φ10mm | |
| Maximum axial work wire size | M8 | |
| Maximum spindle speed | 10000rpm | |
| Radial maximum bore diameter | Φ7mm | |
| Radial maximum bore tapping size | M6 | |
| Radial power head maximum rotation speed | ER11:10000/ER16:8000 | |
| Rated speed of radial power head | ER11:8000/ER16:6000 | |
| Maximum workpiece removal length | 100mm | |
Tool dimension | Number of knives installed | 6 |
| Tool (turning tool) | 12X12 | |
| sleeve | Φ25.0 X 4 | |
| Clip head guide sleeve | Spindle spring collet | TSUGAMI B0205CCR |
| Power head collet | ER11,ER16 | |
| Guide bushing | TSUGAMI BS-20#-B | |
| Feeding speed | Z1/Y-axis feed velocity | 30m/min |
| X1 | 20m/min | |
| Electric motor | Spindle drive power | 2.5/3.7KW |
| Power head drive power | 1KW | |
| For cutting fluid | 0.4KW | |
| Cooling of spindle | 0.075KW | |
| Lubricating oil | 0.01KW | |
| Others | Spindle center height | 1060mm |
| Barometric flow | 0.7mpa 0.5m³/min | |
| Main circuit breaker capacity | 40A | |
| Input power | 9.3KW | |
| Weight | 2.6T | |
| Overall dimensions | 2250X1200X1850mm |
