China Advanced Technical Three Rolls/Four Rolls Rubber Calender with PLC Control System (CE/ISO9001)

Product Description

Name: Rubber calender,Rubber calender machine, Three rolls rubber calender,Four rolls rubber calender,Rubber calendering machine,Rubber coating machine,Rubber sheeting machine
Model No.: XY3I-1400A

Usage:

The calender can be used for rubber sheet or PVC sheet processing, tire sheet processing, coating ect. Roller number will be two roll,three roll, four roll ,five roll.

Features for the rubber calender:
Hollow Roll : quantity can be 2,3,4 or 5 according to the technical of products.
The roll material is Cast iron alloy (LTG-H), after quenching and precision processing, hardness HS:72~74.
Main bearing : Dual-listed Tiaoxin spherical roller bearings
Base of machine : is made by cast iron (FC30),after quenching,highest intension and precision, with lubrication hole.
seal-capping of base is made by aluminum ,no oil leakage in and outside.
Reducer: Airtight leaching oil type,hardened gear reducer, Almost no noise,safty .
Lubrication pump: power is 0.37 KW,by Oil automatic circle. With oil back window on the base of machine,you can check the oil for lubrication.
Emergency brake between motor and reducer, when overload ,the machine will stop automaticly
Parameters below :

Specification	Roller dia x length (mm)	Mid-roller liner speed (m/min)	Calendaring width(mm)
XY-3I1120	360x1120	7.5-22.5	900
XY-3L1120	360x1120	2-20	900
XY-3I1400	400x1400	8.8-26.39	1200
XY-3I1450	450x1450	2.5-25	1225
XY-3F1600	510x1600	2.5-25	1375
XY-3F1520	560x1520	1.5-15	1200
XY-3F1830	610x1730	4.5-45	1500
XY-3F2540	810x2540	3-30	2300
XY-3F3400	900x3400	0.54-5.4	3200
XY-4F1120	360x1120	7-21	900
XY-4F1400	400x1400	8.8-26.39	1200
XY-4Γ1600	560x1600	3.5-30	1400

Auxiliary machine for calender can be cooling device, powder device,belt conveyor,take-up device ect .

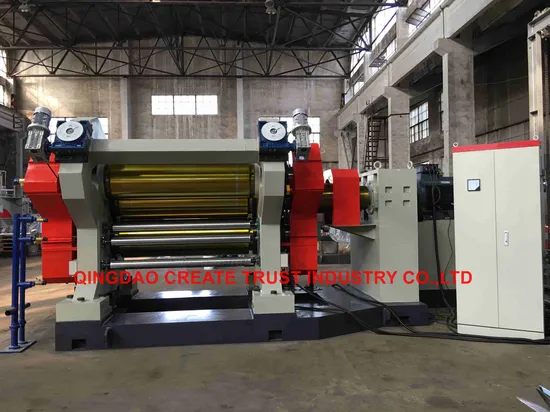

Below photos are manufacture of calender by us :
Service of us:
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
