Customized Circular Sapphire Window for Optics

Product Description

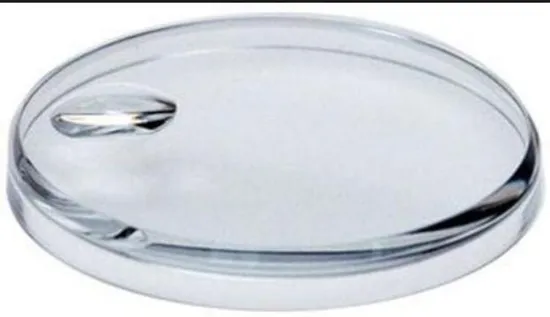

Customized circular sapphire window for optics
Sapphire is a hard crystal,it widely been used for watch and mobilephone, Beauty equipment ,lasers,LED, and so on.
1. Why choose the sapphire?
Thinner and Stronger than Standard Glass Windows
Transmits Wavelengths Ranging From UV to Mid-Infrared
Features Extreme Surface Hardness and Chemical Resistance
2. What is sapphire windows
Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.
3. Product available
Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Ruby
sapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ruby ball
a: Dimesion size : 0.2-300mm or customization , thickness >0.1mm
b: Gemstone Type: Synthetic (lab created)
c: AR coating or as your request
d: Product shape : round , rectangle or custom shape
e: Chemical Composition : Al2O3
4. Materials characteristic

Refractive index (nd)	1.768
Coefficient of dispersion (Vd)	72.2
Density (g/cm3)	3.97
TCE(μm/mºC)	5.3
Soften Temperature(ºC)	2000
Knoop hardness(kg/mm2)	2200

5. Sapphire Windows and Sapphire lenses General Specifications

Diameter	0.2-300mm +/-0.1mm or +/-0.02mm or customization
Thickness	0.10-100mm± 0.1mm or +/-0.02mm
Surface quality (scratch & dig)	60/40, 40/20 or better
Surface accuracy	λ/10, λ/2, λ
Clear Aperture	>85%, >90%
Parallelism	+/-3' ,+/-30''
Bevel	0.1~0.3mm×45 degree
coating	AR, BBAR or upon customer request( UV, VIS, IR)

6.Products
FAQ:
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, TNT, UPS, EMS etc.
(2) If you have your own express account, it's great.If not,we could help you ship them.
Q: How to pay?
A: T/T, Paypal, etc
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 5pcs.
(2) For customized products, the MOQ is 10pcs-25pcs.
Q: What's the delivery time?
A: (1) For the standard products
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 or 3 weeks after you place the order.
(2) For the special-shaped products, the delivery is 4 or 6 workweeks after you place the order.
Q: Do you have standard products?
A: Our standard products in stock.
Q: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.
