Intelligent Security Entrance Barrier Gate Automatic Parking Gate Barrier

Product Description

Intelligent security Entrance barrier gate automatic parking gate barrier
Product information

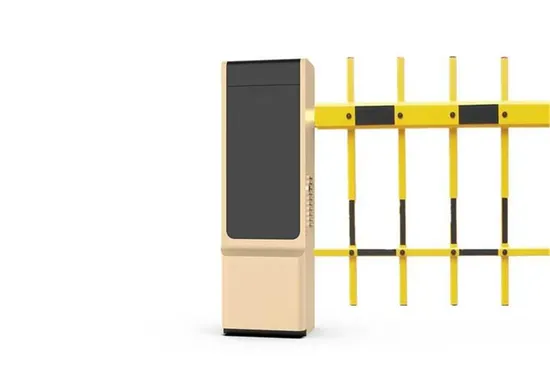

Boom gate , also known as a boom barrier, is a bar, or pole pivoted to allow the boom to block vehicular access through a controlled point. Typically the tip of a boom gate rises in a vertical arc to a near vertical position. Boom gates are often paired either end to end, or offset appropriately to block traffic in both directions.
Features: Adopt 24V DC brushless motor, high-precision cast steel structural parts, torque balance. The movement adopts gear reduction transmission, which has high transmission efficiency and low power output loss. The movement adopts DC brushless motor, which has large output torque and small size. The speed can be adjusted through the controller, and the drop and lift of the rod can be decelerated in place, so that the rod can be in place smoothly. The motor adopts DC24V safety voltage, which avoids electric shock accidents caused by leakage and is more secure for personal safety. Comes with a rebound function when encountering resistance. If the pole is blocked by external force during the falling process, it will automatically lift the pole. The precise four-link structure is used to make the brake lever run quickly and smoothly, and effectively reduce the vibration of the lever. With a variety of interfaces, you can access infrared, ground sense, radar and toll systems. Push-button adjustment, digital tube display, rich functions. Equipped with a crank handle, it can be manually opened/closed when there is a power failure or failure. Automatically close the door after a delay, and cooperate with external protection devices such as ground sense or infrared to realize unattended. Product information:

Model No.	QN-TC0121
Dimension	L360*W265*H1035mm
Main motor specification	Dc brushless motor
Main motor power	120W
Power source	AC 220V/110V±10%, 50/60Hz
Color	Black,Yellow ,Grey ,custom
Remote control distance	≤50m
Supporting arm	Straight pole/folding pole/fence pole/advertising pole is optional
Arm material	Aluminium alloy
Boom length	1.5-6m
Fuselage material	2.2mm galvanized steel plate
Lift bar speed	3~6s optional 1.5s(for 3m) 3s(for1-4m) 6s(for4-7m)
Operating temperature	-30ºC~+70ºC
Working humidity	≤90%, no condensation
Signal output	Switch signal
Arm direction	leftward / rightward optional
Application	Market, Fire Exits, Home, Hotel, Office, Hospital, School, All Purpose Parking, tollgate, etc.
