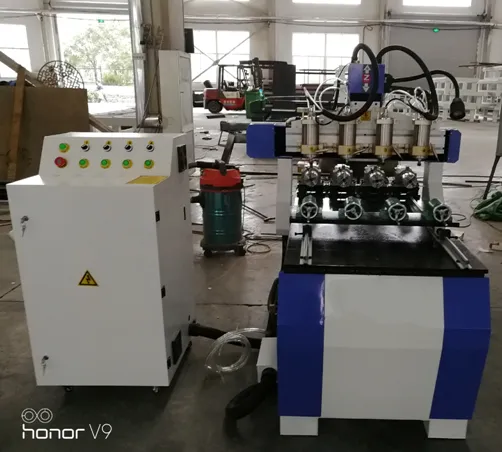

Stone/ Metal /Wood Multi Tool Position CNC Router Machine

Stone/ Metal /Wood Multi Tool Position CNC Router Machine

US$22,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
QL-6090
Feed Mode
Manual
Controlling Mode
CNC
Certification
CE, ISO
Customized
Non-Customized
Condition
New
Color
Customized
Z Working Area
600mm-1000mm
X. Y Working Area
3000*1200mm
Working Delicacy
0.005mm
Repositioning Accuracy
0.05mm
Surroundings for Software
Windows98/2000/XP
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China
HS Code
8458910000
Production Capacity
100sets/Month

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: QL-3012
Voltage: 220V
Power(W): 1500W
Certification: CE
Warranty: 1year
After-sales Service Provided: Overseas third-party support available
Packaging & Delivery
Delivery Detail: 30-45days
Specifications:
Model Standard
Working size 600*900*300mm
Machine body All cast aluminum

Transmission system

X.Z
Taiwan Hiwin Square guide,Germany Imported double ball screw - driving

Y

Taiwan Hiwin Square guide, Germany Imported double ball screw - driving
A 4 PCS Axis of rotation 500*800area

Drive system
Drive systems
X.Y.Z.A Step motor , Leadshine drive

Spindle
Power 1.5KW water cooling spindle 4 PCS
Inverter Fuling
Collet diameter Ø3.175-Ø6

Control System
DSP A18
Working Voltage AC220V±30V, 50HZ
Command Code G Code, *.mmg, *.plt, *.eng
Tool sensor system Available
Compatible Software Type3/Artcam/UcancamV9/Castmate/corelerow/Autocad
Packing type Fumigation-Free Wooden Case
Overall Dimension 1300*950*1250mm
Gross Weight 250kg
