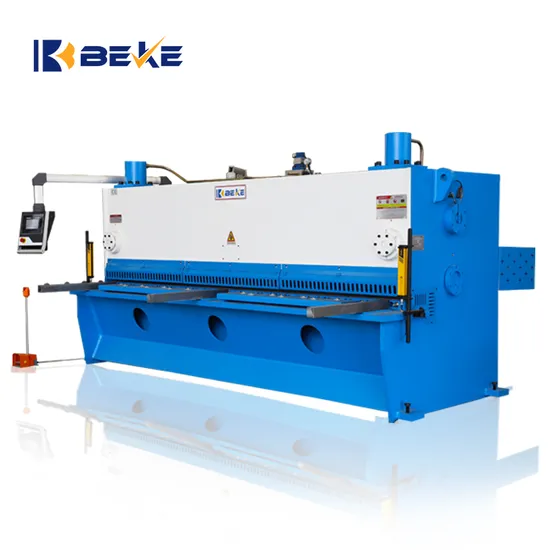

Best QC11K Shearer Guillotine Delem System Hydraulic 3200mm Cutting Machine
Basic Info.
Model NO.
DAC360T 6*3200
Certification
CE, ISO 9001:2000, ISO 9001:2008
Condition
New
Warranty
2 Years
Model
QC11K 6*3200
CNC System
Delem Dac360t
Main Motor
Germany Siemens
Hydraulic Valve
Germany Bosch-Rexroth
Oil Pump
USA Sunny
Ball Screw and Linear Guide
China Taiwan Hiwin
Transport Package
Wooden Box or Container Directly
Specification
3730*1700*1620mm
Trademark
BEKE
Origin
China
HS Code
8462490000
Production Capacity
50 Set/Month
Product Description
Product DescriptionTechnical Data
| Item | Uint | No. | |
| Cutting Capacity | mm | 6 | |
| Cutting Length | 3200 | ||
| Column distance | 3420 | ||
| Throat depth | 150 | ||
| Blade length | 3300 | ||
| Material tensile strength | N/mm² | 450 | |
| Cutting Angle | degree | 0.5-1.5 | |
| Main motor power | kw | 7.5 | |
| Back Gauge | Distance | mm | 600 |
| Speed | mm / sec | 100 | |
| Sliding Front Arms | Quantity | pcs. | 4 |
| Length | mm | 800 | |
| Weight | kg | 6300 | |
| Overall Dimension | Length | mm | 3730 |
| Width | 1700 | ||
| Height | 1620 | ||
| The rlling guide structure is supported by three points; The shear Angle of the tool holder can be adjusted in the range; Shear travel can be adjusted arbitaril; Manual lfing of the retaining function; The inside of the walboard is equipped witha lubricating oil pump; The standard E21S numerical control system controls the cut count and the post-block; A variety of numerical control systems such as DAC360 can be selected. Now the shear can provide variety of choices and features for the products and function, to realize the optimal Shear properties and solutions. Multilingual display;The material retaining supports a variely of shaft control modes such as servo molor, two speed AC motor and frequency converter; Knife edge clearance, shear angle, shear length and shear pressure control; Automatic calculation of shear parameters based on material table;Manual, single step and program modes are optional; The system can oontrol the X-axis resolution accuracy at rear retaining material to 0.01mm. | |||
