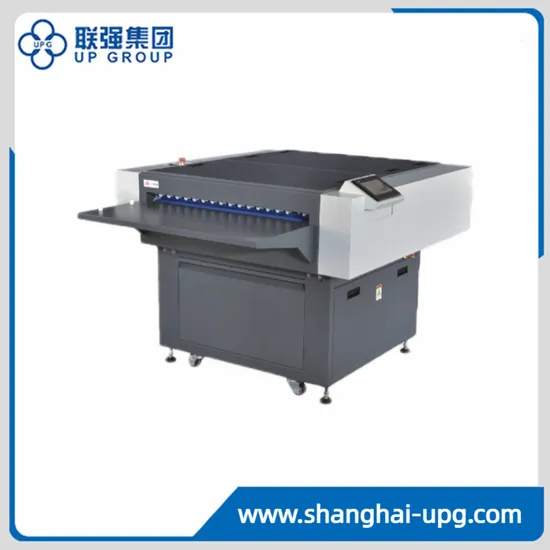

LQ-TPD Series Thermal CTP Plate Processor

Product Description

Computer-controlled automatic thermal ctp- plate processor SZ TPD series are included steps as follow: developing, washing, gumming, drying. Unique solutioncycle ways and accurate temperature control, guarantee accurate and uniform screen-point reappearance.
Speciality
1. Computer-controlled process, suitable for 0.15-0.4mm all kinds of CTP plate.
2. Solution of the liquid temperature PID control, accuracy up to10.5C.
3. Scientific solution of the circulatory system to ensure uniformtemperature.
4. Developing speed, brush rotate speed is all digitally processed, stepless gear is also available.
5. Temperature setting and actual temperature clearly displayed, alarming and error-displaying also available.
6. Accurate developing liquid supply system, liquid guaranteedstable.
7. Special water- -saving design, water running only when plate is moving, no more whole-process water consuming.
8. Automatic rubber roller smoothing, avoiding rubber roller drying out after long-time standing by.
9. Automatic rubber roller cleaning, avoiding rubber roller harden after long-time break.
10. Automatic alarm to remind the replacement filter system to ensure the quality of reappearance.
11. The transmission parts are with super wear-resistant materials, ensuring continuous use for three years without replacing anyparts.
Product Parameters

Model	SZ-TPD860	SZ-TPD1100	SZ-TPD1250	SZ1PD1350	SZ-TPD1450	SZ-TPD1650
Max.plate width	860mm	1150mm	1300mm	1350mm	1500mm	1700mm
Dev.liter	40L	60L	60L	70L	90L	96L
Min.plate length	300mm
Plate thickness	0.15-0.4mm
Dev.temp	15-40°C
Dry.temp	30-60°C
Dev.speed(sec)	20-60(sec)
Brush.speed	20-150(rpm)
Power	1Φ/AC22OV/30A
Netweight	380Kg	470Kg	520Kg	570Kg	700Kg	850Kg
LxWxH (mm)	1700x1240x1050	1900x1480x1050	21001760x1050	2800x1786x1050	1560x1885x1050	1730x1885x1050

New intelligent control system
(smart cc-7 system)
This system adopts the man-machine interface dialogue system, just like your smart mobile phone, convenient, flexible and user-friendly, including all the contents of the manual. Touch screen to know the machine's operation method, system error, troubleshooting, routine maintenance functions and so on. On the basis of the system, There are another three separate functions for customers selection.
Smart developer automatic replenishment system : 1.Smart developer automatic replenishment system:
(Optional) CC-7-1
The traditional developer replenishment method is to determine the supplemental amount based on the CTP plate area, and increase the oxidation supplement, in order to ensure the developing quality. The supplemental amount will be always greater than the actual consumption.
The smart developer automatic replenishment system adds according to the conductivity of the developer (pH, temperature compensation, dissolved saturation, etc.). With the variation of these values, use the advanced data approximation method, create the optimal curve automatically and follow the curve to adjust some parameters of the development process timely, in order to make the developer to achieve the effect. According to the experimental data of last three years, the developer saving effect can reach 20% -33%, very conducive to the environmental protection.
2 Automatic water circulation processing system :
(Optional) CC-7-2
After filtration, the water of the flush plate can be utilized again. The user can adjust the edition amount according to the actual needs, and the system will discharge the high concentration wastewater automatically, while add new water rinse at the same time. The amount of water of this system is only 1/10 of usual.
3. Cloud computing and remote services : (Optional) CC-7-3
If you are equipped with this function, you can make the real remote service and fault diagnosis through the network, and share the convenience and data by the cloud computing.
Our customer service staff can operate the machine remotely to determine the machine failure, and implement the remote repair partly,Customers don't need to worrt about it.
If customers need to replace the plate and the developer, only have to download the brand plate data curve from the cloud simply. No test but to ensure that the first plate will meet the printing requirements, and achieve the intelligent developer replenishment in accordance with the optimal data curve, convenient and green.
Innovation brings us a better life
The above functions are designed based on the environmental protection requirements, saving resource and reducing consumption, to share the responsibility of our beautiful environment for the future generations.
