Factory Supply Hydraulic Lifting Jacks for Grain Silo Tank in Stock

Factory Supply Hydraulic Lifting Jacks for Grain Silo Tank in Stock

US$680.00
1-99 Sets
US$480.00
100+ Sets

Basic Info.

Model NO.
TCT-50-2300
Type
Hydraulic Jack
Structure
Hydraulic Jack
Capacity (Load)
1-10T
Power Source
Hydraulic
Max Height
2300mm
Certification
CE, ISO 9001:2000, ISO 9001:2008
Condition
New
Keywords
Hydualic Jacking System
Lift Height(mm)
Adjustable
Color
Black
Material
Stainless Steel
Customized Support
OEM, ODM
Product Name
Grain Silo Hydraulic Jacks
Lifting Capacity
1-25ton
Min Height
800mm
Package
Wooden Package
Application
Tank Installation Site
Transport Package
Export Package
Specification
Customized
Trademark
WINCOO
Origin
Jiangsu, China

Product Description

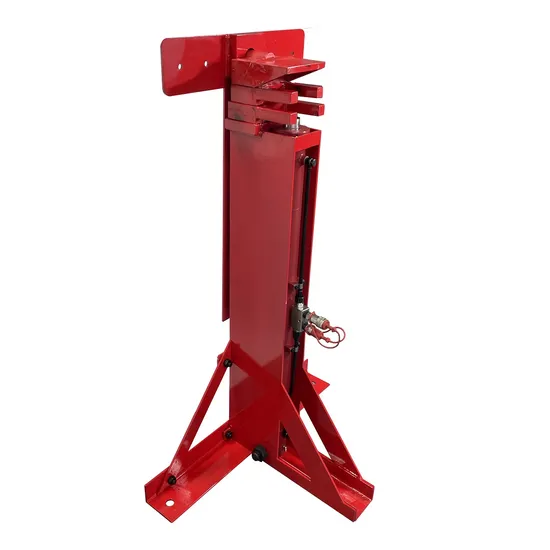

Three Stage Grain Bin Hydraulic Jacks
PRODUCT OVERVIEW
Suitable for all kinds of large storage tanks (steel) and flat bottom corrugated board granary, enamel tank inverted installation construction.
Product Advantages
With sleeve process design, the shape is smaller, the weight is lighter, the miniaturization is easier to install and transport, and the application rate is high.
DETAILED DESCRIPTION
1, This set of equipment is mainly composed of hydraulic jacking pump station, hydraulic cylinder, rectangular steel frame, etc., easy to install.
2, The equipment adopts PLC program to control jacking, which has the advantages of simple operation, high jacking synchronization precision and stable jacking process.
3, Hydraulic jacking pump station has two modes of manual and centralized control, hydraulic cylinder can be single or local (several) to adjust (fine tune) lift and fall; Multiple groups can be centrally controlled up and down; The jacking height can precisely control the butt adjustment of the tank wall welds.
4, Each hydraulic cylinder has a safety valve self-locking, equipment operation will not cause the tank or heavy objects to slide or fall due to power failure, the blasting of a high-pressure hose or the failure of a hydraulic cylinder, hydraulic jacking process is safe and reliable.
5, The plunger type hydraulic jacking system has no side force in the jacking process and has no influence on the tank wall.
6, The stroke of the hydraulic cylinder is 800 mm, which can meet the one-time jacking completion of the width of the wall panel below 2300 mm, reducing the jacking time, Save labor and other auxiliary costs.
7, The overall base length of the equipment is only 1180 mm, which can fully meet the inverted construction and installation process of large storage tanks, granaries and enamel tanks.
TECHNICAL PARAMETER
Hydraulic Jacks
Rated lifting weight
50KN
System pressure
16MPa
Hydraulic travel stroke
0.8m
Size of oil inlet and outlet
M18*1.5
Lifting height
2.3m
Hydraulic operating mode
Double-acting
Lifting mode
Rectangular steel frame
Lock mode
Hydraulic lock and Pin lock
Fixture type
Triangular bracket base, self-tapping fixed
Size
800*620*1180 mm
Weight
60 kg
Basic height of hydraulic jacks
1180 mm

Hydraulic Cylinder
Max working pressure
16 MPa
System pressure
380 V
System flow
38 L/min
Individual maximum displacement
5 L/min
Tank capacity
300 L
Motor speed
1470 r/min
Control voltage
DC 220 V
System temperature
20-60ÂșC
Size
2500*2000*1500 mm



Detailed Photos
SIMILAR PRODUCTS

COMPANY PROFILE

Hymaron Enginering Machinery Co.,ltd is a hydraulic machinery manufacturing company integrated with design, development, production and sales, which mainly manufactures LYT-type chain-type hydraulic hoist, SQD unfixing holding-latch hydraulic hoist and supporting products. Such products are mainly used for inverted lifting and installation of steel storage tanks. Founded in 2003, after years of concentrated scientific research and development, the company obtained the patent certificate of "Utility Model Hydraulic Hoist' issued by "China National Intellectual Property Administration", and the right to use the trademark of "HYMARON" in 2008, so as to enable products of Hymaron Enginering Machinery Co.,ltd to quickly become Chinese brands.
Since entering Chinese market for more than 10 years, products of Hymaron Enginering Machinery Co.,ltd has been sold in nearly thirty provinces, cities and autonomous regions in China, and some overseas markets. The company has production line of advanced technology; meanwhile, Hymaron Enginering Machinery Co.,ltd designs, develops and processes products for famous domestic installation companies. With professional team, strict management and excellent equipment, the company strives to create the brand of "HYMARON",hydraulic hoist and series supporting products. As an expert of hydraulic hoist, HYMARON with charm of high technology is keen,innovative and forging ahead to establish design language of the company.
In an all-inclusive and absorbing and open-minded manner, the hydraulic hoist and hydraulic pump station are perfectly combined to form hydraulic lifting equipment (hydraulic jacking equipment). As the founder and disseminator of hydraulic hoist, HYMARON has been building the inverted hydraulic lifting equipment and production technology of Dongfang installation engineering for a long time.
Hymaron Enginering Machinery Co.,ltd is committed to the research and development of LYT-type chain-type hydraulic hoist, SQD-type unfixing holding-latch hydraulic hoist and the supporting equipment. The LYT-type and SQD-series products have been widely used in various projects (inverted lifting, translation, jacking, and climbing, etc.) by major installation companies all over the country, and have achieved satisfactory results.
HYMARON sticks to improve core competitiveness by virtue of corporate culture, thus setting a good social image of the company during development. "Those hoping to expand the company must study hard from the moment, and the pursuit is endless". "HYMARON" will continuously forge ahead, contributes to the course of installation project in China and permanently moves forward to forge the monument of hydraulic lifting industry in China.
