Waterproof Male Cable Electrical Female Pin Circular Power Socket Panel Connector

Product Description

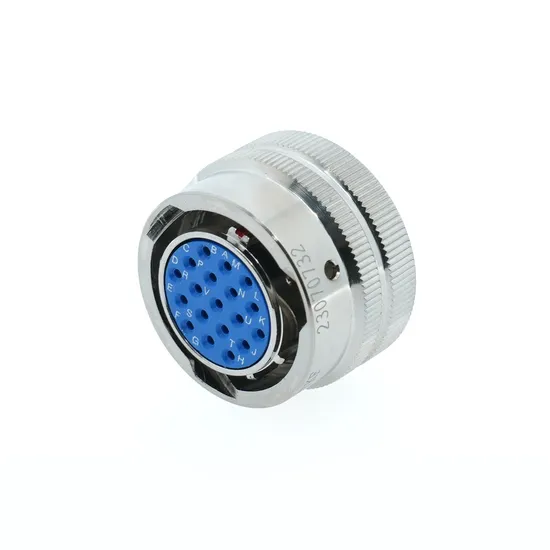

Product Description85106AC14-18S50-44 Y50EX series 18 pins bulkhead connector
Y50EX series military 26482 standard jam nut circular connectors are made conforming to the standard GJB598A, in the light of the U.S.MIL-C-26482.The series is compatible with JY series, MS series and YB series. The same type of response plugs and receptacles can be interchanged. The series connectors with bayonet coupling mechanism have the features of small volume, light weight, high density, convenient application, high durability of plugging and unplugging, etc. They are widely used for the electrical circuit connection in such fields as aeronautics, navigation, telecommunications, railroad locomotives command system, etc.
Type Designation Introduction

NO.	Tpye Designation	Type	Design
1	Identification Code	Circular Connector	Y50
2	Type	Eng	E
3	Strcuture Type	Welding Plastic Closure	X
		Welding Plastic Closure Shield	P
		Crimping Casting	M
		Glass Sintering Hermitic(Receptacle)	Number
4	Shell Size	08,10,12,14,16,18,20,22,24	Number
5	Arrangement NO.of Contacts	To"The Number and Arrangement of Contacts"	Number
6	Plug or Receptacle	Plug	T
		Receptacle	Z
7	Contacts Style	Pin	J
		Sockets	K
8	Type of Plug or Receptacle	Compress Grounding Plug	1
		Cable Plug	2
		Simple Style Plug	3
		Anti-Wave Guard Plug	4
		Elboe Fuard Plug	5
		Square Flange Receptacle	10
		Square Flange Cable Receptacle	10-2
		Circular Flange Cable Receptacle	11
		Screw Fixation Receptacle	14
9	Insert Position	N,W,X,Y,Z,exfect for N.	Letter

Anti misplugging (insulation installation board transposition explain):
In the periphery of the insulating mounting board is provided with different angle keyway, according to the use of the need to transfer the assembly by the manufacturer, to ensure that the same specifications of the plug, the socket will not misplug. In order to make the same kind of specifications of the same assembly serial number corresponding to the plug, the socket can be insert and different assembly serial number corresponding to the plug, socket can not be insert.
Product DescriDetailed PhotosY50EX series circular electrical connector
Y50EX series circular electrical connector
*Compliant with GJB598A-96 (MIL-DTL-26482H) I series
*Bayonet style quick connection
*The termination form is welding
*There are many types of socket installations, such as flange type, cable type, through wall type, and nut assembly type
Various forms
*Five key positions with blind insertion function
*Plugs and sockets can be fitted with both pins and holes
*Equivalent to JY series, YB series, YL series, MS series
*Widely used in aviation, aerospace, navigation, power and other electronic and electrical equipmentConditions of use environment

Relative temperature	-55 ° C ~ +125° C
Relative Humidity	When 40 ± 2 ° C, up to90% ~ 95%
Operating Pressure	101 ~ 0.8kpa
Sin Vibration	101 ~ 2000HZ, acceleration 196m/s2
Collision	Acceleration 392m/s2
Impact	Acceleration 980.7m/s2
Insulation resistance	Under normal atmospheric conditions not less than 3000M Ω Under the conditions of high temperature of not less than three M Ω Humid conditions is not less than 100 M Ω
Resistance Temperature	1500V exchange
Airtightness	General socket is not more than 6 × 10-2Pal / s Socket sintered glass not more than 1 × 10-5Pal / s
Life expectancy	Plug 500
Implementing standards	Q/321283LSB04-2006 "Y50 series of circular connector

Our products are widely used in aviation,aerospace,boat,telecommunication,railway,medical
appar- atus, car, oil survey and so on. Parts of them are sold abroad. Having excellent
characteristics such as small size,high density,suitable for any circumstance,leakage,proof,
nice shielding performance,easy to operate,high reliability and high contents of technological,
our products have received good remarks from our clients all over the world.
1> Q:How to buy your products?
A:You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.
2> Q:How can I get samples?
A: It's my honor to offer you samples,but we can only give
you one free sample,and the freight should be paied by yourself.
3> Q:How does your factory do regarding quality control?
A:Quality is priority.New era people always attach great importance to
quality controlling from the very beginning to the very end.Our factory
has gained ISO9001,GJB9001,QPL lSO14001,certificates.
