China Factory Hot Sale 230W Sharpy 7r Beam Moving Head Light

Product Description

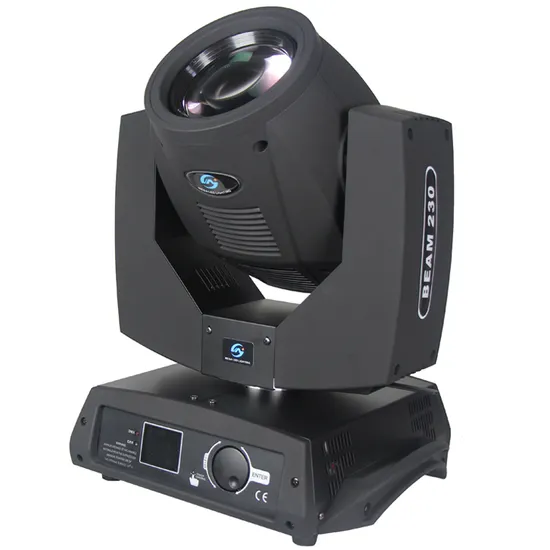

230w 7r beam moving head light
Product Features
1. Beam Spot230 use MHD230W projector lamp, and the brightness output can be comparable with the 1500W searchlight.
2. Has three functions: Spot, Beam, Wash. The light output is very smooth, equivalent to highly saturated palette. It is also equipped with a reflector implant, providing the perfect lighting calibration, quiet and fast.
3. For professional lighting provides comprehensive cover, including 14 colors, 14 fixed pattern, 8 rotating gobos; Rotating 3-facet prism; Futaba atomization; Linear mechanical focusing; Different speeds closed light strobe; 0-100 % mechanical dimming;
4.350W of power consumption and a beam angle of 4.8 ° . Small size, light weight, easy to transport.
5. Suitable for live performances, TV, performances, stage and concert performance lamps.
Product Specifictions
Product Name 230w 7r beam moving head light
Power Supply AC100-240V, 50/60Hz
Light Source Arclite MHD7R 230W projection lamp
DMX Channels 16CH
Power Consumption 380W
Operation Mode DMX512, Sound actived, Auto, Master/slave
Colour Temperature 8500K
Dimmer 0-100%
Stroboscopic 1-8 times/SEC
Beam Angle 0- 3.9°
Color Wheel 14colors+open
Gobo wheel 17gobos+open
Effect Wheel 8 facet prism, An atomizing mirror, positive and negative direction of rotation, and positioning function with prism. Focus, zoom. Liquid crystal display. Optical device, 3 lens type lens group.
Packaging Details Carton or Flight case
Net Weight 16 kg

Channel List: 16CH MODE
Channel		Value	Function
CH1		0~8	White
		8~15	Color1
		16~23	Color 2
		24~31	Color 3
		32~39	Color 4
		40~47	Color 5
		48~55	Color 6
		56~63	Color 7
		64~71	Color 8
		72~79	Color 9
		80~87	Color 10
		88~95	Color 11
		96~103	Color 12
		104~111	Color 13
		112~127	Color 14
		128~191	Rainbow effect with veering(Fast~slow)
		192~255	Rainbow effect with inversion (slow~Fast)
CH2 (Strobe)		0	Off
		1~50	Strobe ON
		51~240	Strobe Speed (slow~Fast)
		241~255	Turn on
CH3 (Dimming)		0~255	OFF~ON
CH4 (Gobo)		0~6	White
		7~13	Gobo 1
		14~20	Gobo 2
		21~27	Gobo 3
		28~34	Gobo 4
		35~41	Gobo 5
		42~48	Gobo 6
		49~55	Gobo 7
		56~62	Gobo 8
		63~69	Gobo 9
		70~76	Gobo 10
		77~83	Gobo 11
		84~90	Gobo 12
		91~97	Gobo 13
		98~104	Gobo 14
		105~111	Gobo 15
		112~118	Gobo 16
		119~127	Gobo 17
		128~191	Rainbow effect with veering (slow~Fast)
		192~255	Rainbow effect with inversion (slow~Fast)
CH5 (Prism)		0~31	No function
		31~255	Prism
CH6 (Prism Rotation)		0~127	Angle
		128~191	veering(Fast~slow)
		192~255	inversion (slow~Fast)
CH7 (Frost)		0~255	Off- Frost
CH8		0~255	Gobo shake
CH9		0~255	Focus
CH10		0~255	Pan
CH11		0~255	Pan Adjusting
CH12		0~255	Tilt
CH13		0~255	Tilt Adjusting
CH14		0~255	XY speed (Fast~slow)
CH15		0~254	No function
		255	Reset
CH16 (The lamp control)		0~100	No function
		100~105	Delay closing	106~199		200~205	Delay open
		206~255	No function
