2000W Handheld Laser Welder for Metal Iro Stainless Steel Aluminum Brass

Product Description

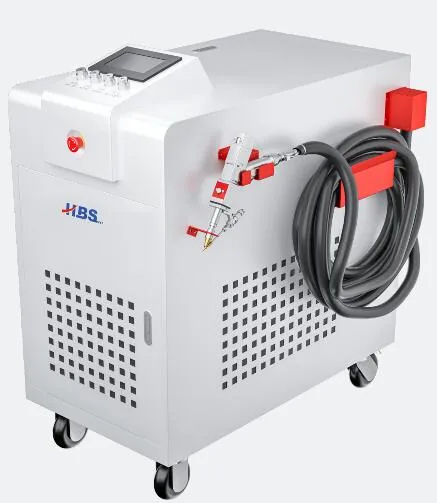

2000w Laser Welder Portable Handheld Fiber Laser Welding Machine for Metal Iro Stainless Steel Aluminum Copper Brass
Product Description
Our handheld laser welding machines use the latest generation of laser sources, including CW/pulse output modes. Suitable for welding stainless steel plate, carbon steel plate, galvanized plate and aluminum plate. Swing welding technology, adjustable focal length, operation with the highest process consistency, ensuring high quality products for the laser industry. Laser welding is a welding technique that uses lasers to join metals together. The beam provides a concentrated heat source, allowing for narrow, deep welding and high welding rates
Technical parameters

Laser Power	1000w	1500w	2000w
Laser Wavelength	1070nm	1070nm	1070nm
Fiber Cable length	10meters	10meters	10meters
Cooling method	water	water	water
Voltage	220v	220v	380v
Power consumption	5kw	7kw	9kw
Frequency	50/60 HZ	50/60 HZ	50/60 HZ
Scan width	0~6mm	0~6mm	0~6mm
Laser gun	motor wobble	motor wobble	motor wobble
Focus length	150mm	150mm	150mm
Cryogenic water flow	12L/min	12L/min	12L/min
Protective gas	Argon gas could meet most of the requiremen
Protective gas pressure	10~12Mpa

Product Characteristics
Hand-held welding, flexible operation, wide range of reach. The wobble welding joint is independently developed, with wobble welding mode, adjustable spot width and strong welding fault tolerance, which makes up for the disadvantage of small laser welding spot, expands the tolerance range and weld width of machined parts, and obtains better weld line forming. The weight for the welding head.
Simple operation, easy to master, operator only needs 1 day to be familiar with, suitable for all kinds of complex welds, overcome the limitations of the table
Lower budget: Handheld laser welders aim to meet your budget by reducing weld processing time, simplifying welding skills training procedures, and saving on post-weld processing a. Fast welding speed, up to 10 times that of argon arc welding speed, can save 3 welding labor. b. Workers can complete from study to proficiency in half a day, without relying on manual skills; c. The machine is controlled under the ideal configuration system, allowing the width and depth of welded joints to be consistent, greatly improving the welding quality and saving the subsequent polishing process.
Environmental protection:When the traditional argon arc welding machine is welding, it is easy to produce dust splashing and form harmful gas, which is harmful to the environment and workers' bodies. However, Herolaser laser welding machine is almost zero damage to the environment.
Less consumables & long service life:hbs has 23 years of laser equipment production and development experience, stable technology, committed to providing customers with machine lifetime warranty service
