Dual-Spectrum Bullet Thermal Detector Intrusion Detection Fire Prevention Camera

Product Description

Product Description

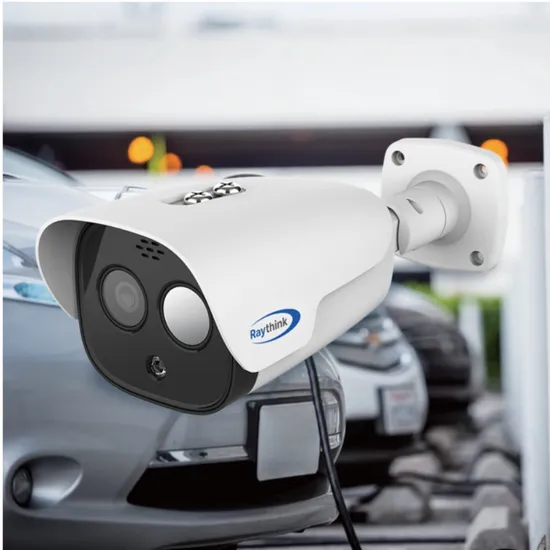

FC225T dual-spectrum bullet camera equipped a 256×192 resolution, 12μm pixel pitch thermal detector and a 5MP visible light sensor. It support tripwire/intrusion detection with AI human/vehicle classification algorithm. Meanwhile, it can analyze temperature and detect fire point. It can be used for perimeter protection and fire prevention in residential areas and commercial facilities.Product Highlights
• 12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
• Dual-Spectrum Imaging All-weather, 24/7 security monitoring with dual thermal&visible light imaging..• Accurate Temperature Measurement Measurement range from -20ºC to 550ºC, accuracy ±2ºC or 2%.
• AI Target Recognition Smart video content analysis, human/vehicle recognition on thermal channel for crossline/intrusion detection.
• Intelligent Alarm Supports alarm linkage for multiple events, as well as audible and visual alarms.
• Platform IntegrationSupport ONVIF, provide SDK&demo for development; provide NVR and VMS software for application. Specifications

Technical Specifications	FC225T
Thermal Module
Detector Type	VOx, uncooled FPA detector
Spectral Range	8~14μm
NETD	≤40mK(@25°C,F#1.0,25Hz)
Resolution	256×192
Pixel Pitch	12μm
Focal Length	3.2mm	7mm	10mm
Optical Module
Sensor	5MP 1/2.8" CMOS
Maximum Image Resolution	2560×1920
Focal Length	4mm	8mm	12mm
IR Distance	30m
Dual-Spectrum
Bi-Spectrum Image Fusion	Support
Temperature Measurement
Measurement Range	-20ºC~+550ºC
Measurement Accuracy	±2ºC or ±2%
Measurement Rules	Support 4 temperature measurement rules(fullframe, point, line, area)
Smart Function
Fire Detection	Support
VCA	Smart video content analysis, human/vehicle recognition on thermal channel for crossline/intrusion detection
2-Way Audio	Support
Linkage Action	Video/ Snapshot/Email/Alarm output/sound and light alarm
System Interface
Power	DC 12V±25% / POE(802.3af)
Network	1×RJ45 10M/100M self-adaptive interface
Audio Input	1×input
Audio Output	1×output
Alarm Input	2×input
Alarm Output	1×output
Storage Interface	Micro SD card (up to 256G)
Reset Button	Support
RS485 Interface	1×RS485
General
Work Environment	-40ºC~+70ºC;<95%RH
Protection	IP66
Power Consumption	Max.<6W
Dimensions (mm)	265×99×87 (length can be adjusted to a minimum of 253mm)
Weight	950g

Application Scenarios
Perimeter Protection Fire Prevention
Electrical Power Monitoring Warehouse Security Company Information
