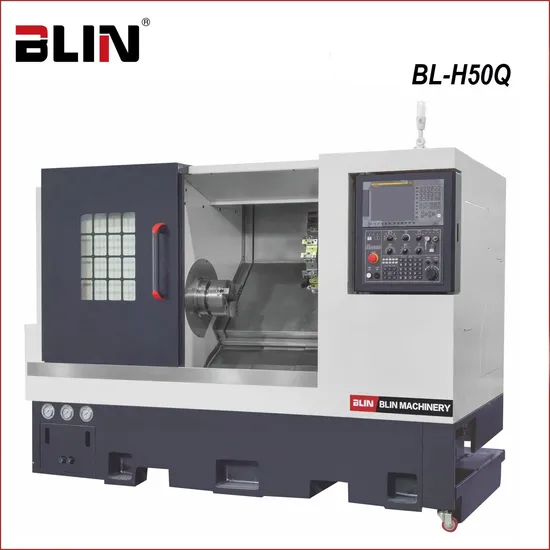

Horizontal Style Inclined Bed CNC Lathe Tool of High-Quality Standards (BL-H50Q)
| US$31,100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-H50Q
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
Mid-Range CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Max. Swing Dia. Over Bed
500mm
Max. Turning Length
500mm
Max. Turning Dia.
400mm
Spindle Bore
62mm
Spindle End Type
A2-6
Spindle Speed
3500rpm
Transport Package
Package
Specification
2500*1500*1700mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Units/Year
Product Description
High quality horizontal slant bed cnc lathe machine(BL-H50Q)- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt 45°integral slant bed design
- Adopt ROLLER type linear guideway,super high rigidity
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
- Adopt especial structure programmable tailstock, tailstock quill not move, whole tailstock body driven by hydraulic cylinder on linear guideway
- Mount 10T hydraulic-servo tool turret
| Item | Specification | Unit | BL-H50Q |
| Capacity | Chuck size | / | 8''/10'' |
| Max. swing dia. over bed | mm | Φ500 | |
| Max. swing dia. over saddle | mm | Φ250 | |
| Max. turning length | mm | 500 | |
| Max. turning dia. | mm | Φ400 | |
| Spindle | Spindle bore | mm | Φ62 |
| Spindle end type | / | A2-6 | |
| Spindle speed | rpm | 3500 | |
| Max. bar through dia. | mm | 51 | |
| Spindle motor power | kw | 11 | |
| X/Z axes | X/Z axes linear guideway type | / | ROLLER type |
| X axes travel | mm | 210 | |
| Z axes travel | mm | 500 | |
| X/Z axes rapid moving speed | m/min | 30 | |
| Tool turret | Tool turret type | / | 10T Hydraulic-servo |
| Toolshank size | mm | 25×25, Φ32 | |
| Tailstock | Tailstock quill taper | / | MT5# |
| Tailstock body max. travel | mm | 450 | |
| Accuracy | Positioning accuracy(X/Z) | mm | ±0.005 |
| Repeat positioning accuracy(X/Y/Z) | mm | ±0.003 | |
| Others | Overall size | mm | 2500×1500×1700 |
| N.W. | kg | 3800 |
Main parts list:
| Item | Brand |
| Spindle unit | TAIWAN-KENTURN |
| Tool turret | TAIWAN-MYKUN |
| Ball screw | TAIWAN-HIWIN/PMI |
| Ball screw bearing | GERMANY-FAG |
| Linear guideway | TAIWAN HIWIN/PMI |
| Lubrication system | JAPAN-HERG |
| Rotary oil cylinder&chuck | TAIWAN-AUTOGRIP |
| Main electricity parts | FRANCE-SCHNEIDER |
Standard configuration:
- SIEMENS 808D ADVANCED CNC controller
- Hydraulic chuck
- Hydraulic-servo tool turret
- Hydraulic tailstock
Optional configuration:
- SYNTEC/SIEMENS 828D/FANUC CNC controller
- Automatic chip conveyor
Other model Choice:
All machine range:
