Basic Info.
Type
Surface Grinding Machine
Controlling Mode
Artificial
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
CE, RoHS, ISO 9001
Max. Collet Capacity
18mm
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description

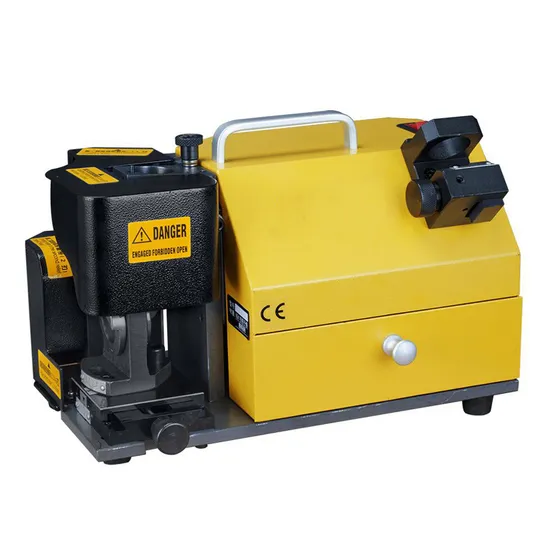

Portable End Mill Cutter Grinder Machine
Product Description:
1. Portable idiot end mill sharpener, can grind 2-flute, 3-flute, 4-flute end mill.
2. Grinding is accurate and rapid, easy operation with no skill to grind.
3. With Taiwan diamond grinding wheel, only one piece can complete all procedures.
4. It can be equipped directly with an accurate angle and long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.
Model: | MR-X3 |
Diameter: | Φ4-Φ14mm |
Power: | 220V/160W |
Speed: | 4400rpm |
Point angle: | 0°-5° |
Dimension: | 35*25*25cm |
Weight: | 14KG |
Standard Equipment: | Grinding wheel :SDC (for carbide)×1 |
| Six collets: Φ4,Φ6,Φ8,Φ10,Φ12,Φ14 |
| Two collet chucks: |
2,4 flutes ×1 piece; |
3,6 flutes×1 piece |
Optional Equipment: | Grinding wheel :CBN (for HSS) |
