Jwell-30DN-C Versatile 30L Extruderull Servo Plastic Blow Molding Machine for Plastic Tool Manufacturing Blowing Molding/Moulding Making Machine

Product Description

Product Description

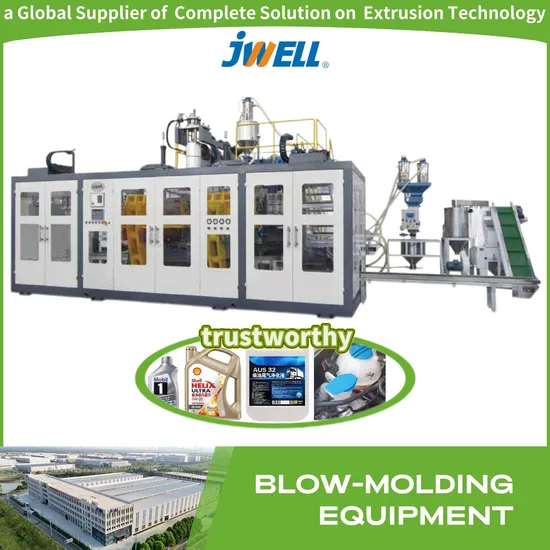

JWELL-BM30DN-C Blow Molding Machine
Suitable for producing 15-30L different size Chemical packaingjerrycan.
Product photos
Performance and advantages
1.Suitable for producing 15-30L different size Chemical packaingjerrycan.
2.Adopt continuous type die head, up-blowing structure, convenient forproduct auto-deflashing on-line, scrap conveying on line, finishedproduct leak testing on line, conveying,packing, etc.,reducing theworking cost and increasing the production ratio.
3.Adopt toggle type platen structure, have the advatagesof uniform-clamping, big clamp force, assembling largemould, easier dismounting& assembling the mould.
4.Optional multi-ayer co-extrusion system.
5.Optional view strip line system.
6.Optional hydraulic servo control system.
Technical parameters

Technical parameters
Model	Unit	JWELL-BM30DN-C
Max product volume	L	30
Die head structure	--	Continuous Type
Main screw diameter	mm	100
Max plasticizing capacity (PE)	kg/h	190
Driving motor	Kw	55
Oil pump motor power(Servo)	Kw	22
Clamping force	KN	300
Mode moving control	--	Servo motor control(Optional)
Space between platen	mm	340-860
Platen size W*H	mm	580*600
Max.mould size	mm	500*600
Platen moving stroke	mm	800
Heating power of die head	Kw	20
Heating power of die headMachine dimension L*W*H	m	5.6*4.8*4.5
Machine weight	T	18
Total power	Kw	125
Note: nformations isted above are for reterence onlv, the production ine can be desianed ov customer's reauirements.

packaging&Shipping
In order to ensure the integrity of the goods in long-distance transportation, to avoid damage to the goods in sea transportation and corrosion of the sea water to the goods, to avoid damage in the process of freight transportation, we use the outer package-wooden box and the inner package-plastic wrap packaging to ensure the safety of the goods.If you have special needs, you can also tell us, we will do our best to do and let you rest assured

Company Profile
JWELL is a global supplier of complete solutions on extrusion technology.
Oriented from Shanghai, JWELL Mlachinery Co., Ltd is the largest manufacturer of extrusion machinery in China, its 8production bases are located in Jiading District of Shanghai, Zhoushan City of Zhejiang Province, Taicang city of jiangsuProvince, Liyang City of Jiangsu Province, Haining city of Zhejiang province,Chuzhou City of AnHui Province, Quaniao cityof AnhuiProvince and Thailand. Totally covering areas more than 1,000,000 square meters.t has more than 3000staffs, about 580 technicals and managing staffs with over 500 national patents, We produce more than 3000 advancedextrusion lines every year, which were exported to 120 countries and regions over the world. Jiangsu Jwell Intelligent Machinery Co., Ltd. is a high-tech manufacturer dedicated to the research, development and manufacture of plastic extrusion equipment. Our main products are all kinds of plastic sheet, plate, film extrusion equipment. We not only have professional R&D team, experienced technicians, but also advanced production and processing base and standardized assembly workshop. Our customers are all over China as well as overseas countries and regions. Based on the enterprise spirit of "Excellent Quality, Perfect All", we are constantly exploring the new field of extrusion.
