High Speed Straight Line Copper and Steel Cable or Wire Drawing Machine with Individual Motors

Product Description

Aluminum Rod Breakdown Machine with Individual Motors
1. Description:
This machine is used to produce aluminum wires sized φ1.6-4.5mm from aluminum rods of φ9.5mm or wire φ2.0- 4.0mm from aluminum alloy rods of φ9.5mm. The drawing capstan is arranged in straight line and in a continuous order. Each twin-capstan is drove by single Servo motor. The machine speed gets well along with the electric speed so as to change dies quickly as well as to meet different aluminum material. It is highly praised for easy operation, high efficiency and excellent wire quality.
Used for drawing round and irregular line of aluminum and aluminum alloy rod;
Provide straight gear drive and separate motor drive wire drawing machine, at the same time can be selected with single or double head wire drawing machine;
This machine is used to produce aluminum wires sized φ1.6-5.5mm from aluminum rods of φ9.5mm or wire φ2.0- 4.5mm from aluminum alloy rods of φ9.5mm.
Each drawing ring is independently driven by a motor. Each compression ratio can be set appropriately, convenient for mold matching. Can meet a variety of grades of aluminum wire drawing.
Optional withdrawal lighter can realize aluminum alloy wire online annealing;
Optional: single take-up machine, double automatic take-up machine, vertical pay-off machine or their combination of various take-up forms;
Using MMI+PLC control system, production line synchronization control, online monitoring, process parameters can be modified in the touch screen, storage, reading, simple and fast operation;
The machine is completed with other items which can be supplied by Reliable upon customer's request, such as heading press machine, heat exchanger, vapor generator, filter unit for drawing solution, etc.

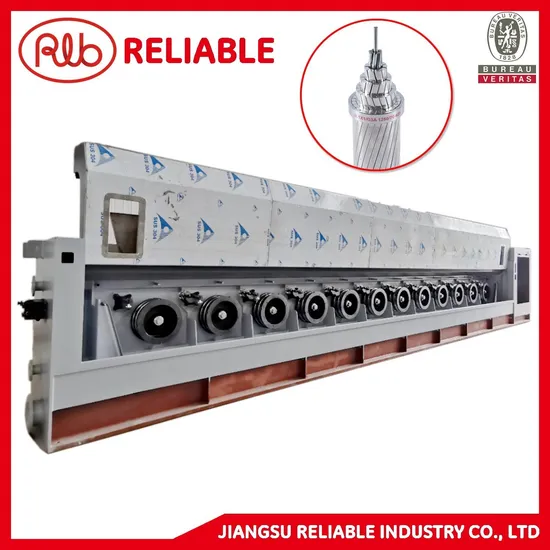

2. Equipment Pictures
3. Technical parameters

Drive Mode	Model	Inlet Dia (Mm)	Wires	Outlet Dia (Mm)	Max. Speed (M/S)	Max Drawing Pass	Capstan Dia(Mm)	Installed Capacity (Kva)	Overall Dimension (M)
Shunt Drive	LWHD-450/9	Φ9.5	1	Φ2.5-φ4.5	25	9	φ450	300	22x6x5
	LWHD-450/11	Φ9.5	1	Φ2.0-φ4.5	30	11	φ450	350	24x6x5
	LWHD-450/13	Φ9.5	1	φ1.6-φ4.5	30	13	φ450	400	26x6x5
	LWHD-450/11(2)	2*Φ9.5	2	Φ2.0-φ4.5	30	11	φ450	600	24x10x5
In-Line Gear Drive (Single Motor)	LWHD-450/9	Φ9.5	1	Φ2.5-φ4.5	25	9	φ450	300	22x6x5
	LWHD-450/11	Φ9.5	1	Φ2.0-φ4.5	30	11	φ450	350	24x6x5
	LWHD-450/13	Φ9.5	1	φ1.6-φ4.5	30	13	φ450	400	26x6x5
	LWHD-450/11(2)	2*Φ9.5	2	Φ2.0-φ4.5	30	11	φ450	600	24x10x5
Take-up form (optional): 1) 630Single bobbin take-up 2) 630Dual bobbin take-up 3) 800Single bobbin take-up 4) 800Dual bobbin take-up 5) 820Vertical pay-off 6)Or above combination

4. Layout:
5. Application Demonstration
Application Demonstration: According to the need, it can be configured with a variety of take-up machine;
Suitable for drawing round and irregular conductors
Can be configured with a withdrawal lighter to realize online annealing of aluminum alloy
