Basic Info.
Processing Accessory
Manual Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Station Toolpost
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Name
New High Quality Small Bench Lathe Machine BV20
Distance Between Centers
300mm
Tool Post Type
4-Station Toolpost
Swing Over Cross Slide
110mm
Key Word
Small Bench Lathe
Control
Manual Lathe Machine
Transport Package
Wooden Case
Specification
800*450*450mm
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
80.00cm * 45.00cm * 45.00cm
Package Gross Weight
75.000kg
Product Description

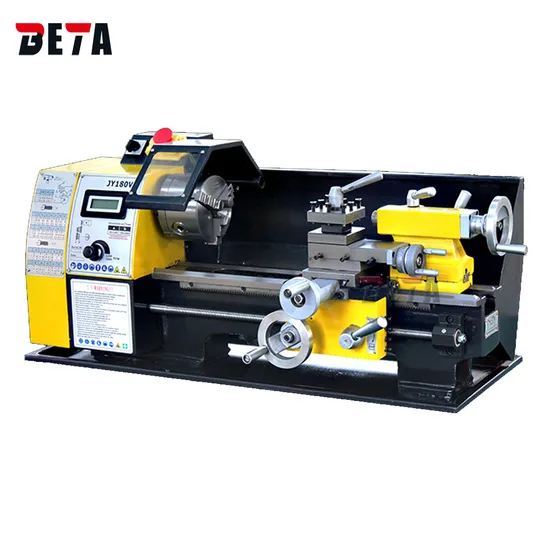

China Factory Variable Speed Spindle Small Metal Turning Bench Lathe For Sale
Standard accessories:
3-jaw chuck,
chuck cover,
4-station toolpost,
toolpost cover,
tailstock,
change gears,
oil gun,
wrenches & tool boxOptional accessories:
machine stand,
SINO DRO,
work lamp,
coolant pump,
turning tools,
4-jaw chuck,
live center,
drill chuck,
drill bits
Model | JY180V |
Distance between centers | 300mm |
Swing over bed | 180mm |
Swing over cross slide | 110mm |
Spindle bore | 20mm |
Number of spindle speeds | variable speed |
Range of spindle speeds | 50-2500rpm |
Range of inch threads | 8-44 I/n" 8 kinds |
Range of metric threads | 0.5-3.0mm 10 kinds |
Top slide travel | 55mm |
Cross slide travel | 75mm |
Tailstock quill travel | 60mm |
Taper of tailstock quill | MT2 |
Motor | 600W Brushless Motor |
Packing size | 800*450*450mm |
Net /Gross weight | 60/75 kg |
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units. Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
