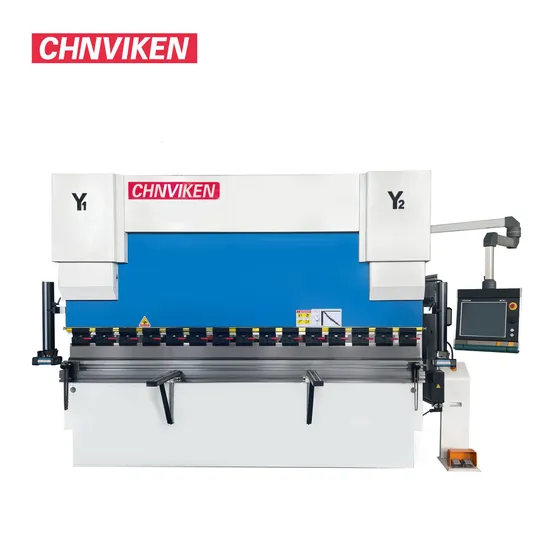

We67K Most Effective Press Brake High Precision Bending Machine with Da66t System
| US$15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
WE67K
Warranty
5-year
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Bending Force
63t 100t 160t 200t 300t 400t 600t
Machine Type
Synchronized
Length of Working Table (mm)
2500 3200 4000 6000
Automatic Level
Fully Automatic
Controller System
Da66t
Daylight
320 360 440 530
Throat Depth
250 320 400
Main Motor Power
7.5kw 11kw 15kw
Transport Package
Plywood Box
Specification
25 CBM
Trademark
CHIVIKEN
Origin
Anhui, China
HS Code
8462299000
Production Capacity
1000 Sets/Year
Product Description
Delem DA66T CNC Control system:
The new generation DA-Touch controls offers an even higher grade of efficiency in programming, operation and control of today's press brakes. Ease of use combined with state-of-the-art technology go hand in hand, improving productivity.
The touch screengives access to the proven Delem user-interface and enables direct navigation between programming and production. Functions are directly located where you need them, offering optimised ergonomics throughout the application.
The DA-66T offers 2D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.
Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using press brakes easier, more efficient and more versatile then ever.DA-66T features
> 3D visualisation in simulation and production
> 17″ high resolution colour TFT
> Full Windows application suite
> Delem Modusys compatibility (module scalability and adaptivity
> USB, peripheral interfacing
> User specific application support within the controllers multitasking environment
> Sensor bending & correction interface.
| Bending Capability | 80/3200 | 100/3200 | 125/4000 | 160/3200 | 200/4000 | 300/4000 | 400/6000 |
| Nominal Force(KN) | 800 | 1000 | 1250 | 1600 | 2000 | 3000 | 4000 |
| Worktable Length(mm) | 3200 | 3200 | 4000 | 3200 | 4000 | 4000 | 6000 |
| Column Distance(mm) | 2565 | 2610 | 3450 | 2610 | 3140 | 3140 | 4740 |
| Throat Depth(mm) | 250 | 320 | 320 | 320 | 320 | 400 | 400 |
| Ram Stroke(mm) | 120 | 120 | 120 | 180 | 250 | 250 | 300 |
| Main Motor Power(KW) | 5.5 | 7.5 | 7.5 | 11 | 15 | 15 | 30 |
| No. | Component Name | Details |
| 1 | Controller | DA-66T |
| 2 | Main Motor | Siemens Main Motor |
| 3 | Hydraulic system | RexRoth, Germany |
| 4 | Oil pump | Sunny, America |
| 5 | Electrical components | S chneider, France |
| 6 | Servo motor and driver | Estun, China Nanjing |
| 7 | Ball screw linear guide rail | HIWIN, China Taiwan |
| 8 | Hydro-cylinder | VIKEN |
| 9 | Bear | NSK, China Shanghai |
| 10 | Punch and Die | 42CrMo Material |
