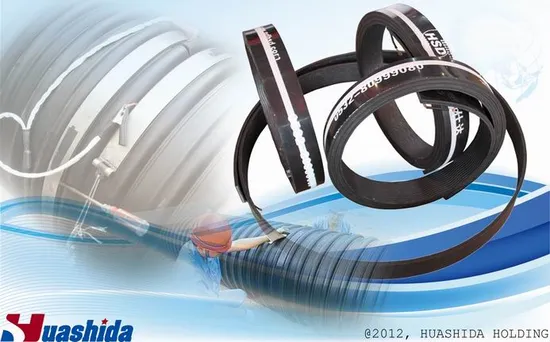

HDPE Electro Fusion Tape for Metal Reinforced Corrugated Pipe

Product Description

Polyethylene electric heating fusion tape for Metal reinforced polyethylene spirally corrugated pipe. Product Description
Product description:
It is a kind of connecting pipe fitting what is widely used on anti-corrosion, especially on Directly buried pre-insulated pipes field joint. It is made by Polyethylene sheets complex with the electro-fusion wire.
Feature:
1. According to the pipe corrugated process, the peak valley width usually from 60mm to 80mm, the Narrow tape welding the pipe joint along the cutting edges.
2. Because of various of restrictions, can not guarantee the airproof capability after the pipe joint welded.
3. The best way to weld the joint should use the Hand extruder welding the cutting edges inside of the pipe first, the use the narrow tape welding it from outside.
Performance:
1. Waterproof;
2. Able to withstand axial forces initiated by axial movements of the pipe in the ground;
3. Able to withstand radial forces and bending moments;
4. Able to withstand effects of temperature and temperature variations.
5. Have the same thickness of the line pipe insulation layer.
Product Parameters
Technical parameters:

Specification
Metal reinforced polyethylene spirally corrugated pipe diameter	Size Length× Width× Thickness
DN600	2184× 50× 7
DN700	2197× 50× 7
DN800	2850× 60× 7
DN900	3200× 60× 7
DN1000	3500× 60× 7
DN1100	3650× 60× 9
DN1200	4030× 70× 9
DN1300	4432× 70× 9
DN1400	4750× 70× 9
DN1500	5000× 70× 9
DN1600	5287× 70× 9
DN1800	5915× 70× 9
DN2000	6542× 70× 9
