ram piston punching briquette machine with 80mm diameter

Product Description

Product Description
Product Description

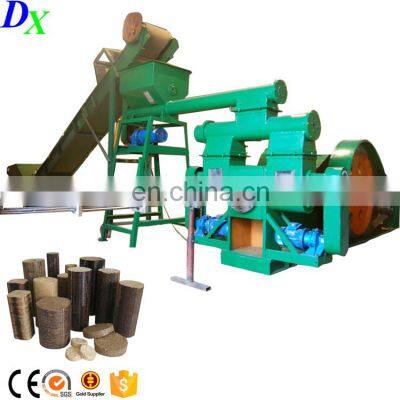

Product ApplicationIntroduction of punching briquette machine
Punching briquette machine which is a kind of advanced dual-use of biomass wood pellet and briquette integrated molding machine, belongs to the biomass forming fuel equipment field.
We introduced European advanced technology, combined years of experience of biomass fuel plant which practices to set up factories with the latest technological achievements, so that we research and develop the latest pellet and briquette integrated equipment.
This machine adopts the ram-type principle of the crank-link mechanism.The body of machine is welded with high strength alloy steel plate,and it is formed by the integral forming process of the inner connecting the engine base. The special sealing device of main shaft to prevent oil leakage and the special punch rod dedusting cooling device, which greatly improves the running time.
Main Features of punching briquette machine
1)Using the principle of stamping, not blocked by the material, low energy consumption, high molding rate
2) Oil circulation lubrication and cooling, to avoid the timing of filling butter, so that the cost of lubrication is greatly reduced
3) It’s easy to dismounting and install mold, punch,easy maintenance, low mold cost
4) Punch optional mold is from φ8to φ80mm, We can according to customer needs at any time to choose the corresponding mold, reduce production cost;
Certifications
Detailed Images
Machine Parts
Name: Screw vonceyor
Length: 6m
Power: 3kw
Usage: Convey raw materials to Automatic feeder
Main Features
Name: Automatic feeder
Power: 4kw +4kw
Usage: Feed materials to machine evenly
Machine Parts
Name: Main machine
Power: 45kw
Feature: Motor is double shafts
Main Features
Name: Electric cabinet
It can control all the parts automaticly
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

Packaging
Size	4000*388*2500
Weight	7T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	600(L) * 500(W) * 700(D)
Weight	0.3T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

FAQ
Question 1
What is the max feeding size of raw materials?
--- Answer: you can feed various materials, size is 1mm to 30mm.
Question 2
What is briquette size from your machine?
--- Briquette size is from 8mm to 80mm. It can be hollow or solid.
question 3
How many briquette can we from this machine?
--- Pellet capacity is: 800-900kg/h
briquette capacity is 1000-1200kg/h
