Hc4016f Four-Sided Wood Thickness Planer for Precision Crafting

Product Description

HC4016F Four Side Wood Working Thicknessing Planer
Product Description
Machine Specification:1. Machine frame made from high quality whole casting, machining with special treatment and precision machining, with stable performance, rigidness, good precision.2. Working table use special high-quality wear-resistant materials, the special treatment, precision grinding and hard chrome-plated, the table is beautiful surface, smooth, good wear resistance.3. Main spindle use high-strength special steel, with special heat treatment, precision machining and dynamic balancing treatment, with precise assemble and testing, its stable operation, stable performance, durability, good processing accuracy.4. Main spindle use famous high precision grade bearings, with precision assembly and high-speed running constant temperature testing stable operation, good accuracy.5. For the feeding system structure, locate frond and back of active working table and left & right spindle, both to ensure the workpiece surface is not crushed, and also can meet the strong feeding requirements, to achieve high-speed feeding and planning.6. Feeding use frequency converter and universal coupling transmission structure, to achieve frequency control speed feeding. With stable operation, stable performance, easy operation.7. There have 3 sets side-pressing wheels in front of feeding table, precision workpiece-oriented, feeding smoothly.8. The machine adopts centralized lubrication system, equipped with hand-held pump, lubricate for sliding guide rails, slide plates and other lubrication point, easy to operate, more hummization.9. Main electrical components, transmission parts are imported components of international brands, performance is stable, good reliability.

Product Parameters

Model	HC4016F
Max working width	20-160mm
Max working thickness	8-100mm
Min. Working length	300/530mm
Feeding speed	8-33m/min
Bottom spindle speed	6800r/min
Other spindle speed	8000r/min
Spindle quantity & diameter	6pc & 40mm
1st Upper cutter	105-150mm
2nd Upper cutter	105-150mm
1st Bottom cutter	125mm
2nd Bottom cutter	105-150mm
Right cutter	115-170mm
Left cutter	115-170mm
1st Upper spindle	5.5kw
2nd Upper spindle	4.0kw
1st Bottom spindle	4.0kw
2nd Bottom spindle	5.5kw
Right spindle	4.0kw
Left spindle	4.0kw
Feeding power	4.0kw
Lifting power	0.75kw
Total power	31.75kw
Air pressure	0.6mpa
Dust collection port diameter	120mm
Outline dimension	3600*1450*1600mm
Machine weight	3500kg

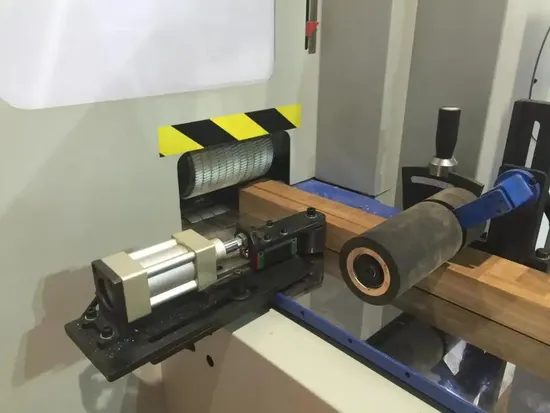

Detailed Photos
Final Product

HICAS group is one leading manufacturing and exporting company of wood working machine in China.
We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter. 1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box. 3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback

FAQ
1. Do you offer installation?
Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.

3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.

4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.

5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.

6. Can you customized the machine?
Our machines can be customized made according to buyers' request.

7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.

8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish.
