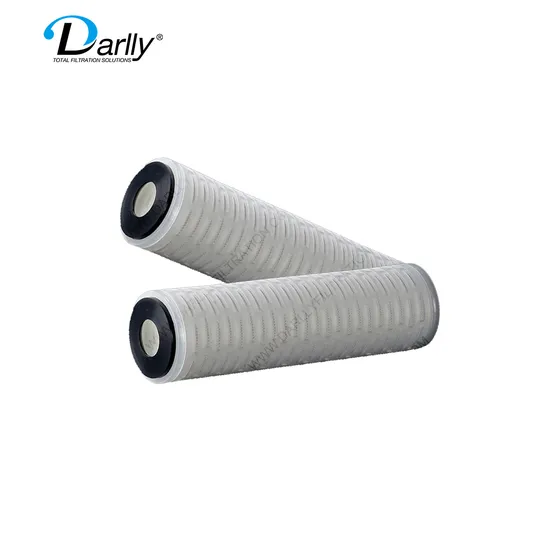

Darlly Pes Membrane Pleated Filter Cartridge for Sterile Filtration

Product Description

Blueflo™ PES Series filter cartridge is constructed of imported hydrophilic asymmetric PES membrane and imported non-woven fabrics and silk netting as support and then pleated.The cage,PP core and end cap are thermally welded with media without using any glue.All cartridges are manufactured and assembled in a clean room environment.100% of the cartridges are integrity tested and flushed with EDI pure water.It is suitable for filtering weak acid/alkali based liquid and ultra pure water.
Features
• Asymmetric membrane structure
• 100% integrity tested
• High hydrophilic membrane,high flow rate,the pores of membrace uniformly distributed.
• The membrane construction of asymmetric enlarge the dirty capability andextend the life time of the filter cartridge.
• Do not use any glue and surface active agent during production process which reduces the risk of precipitation effectively.

	Length(mm)	O.D(mm)	I.D(mm)	QTY(PCS/CTN)	CTN Size(mm)
BA5	127	69	28	24	500x220x340
BA10	250	69	28	24	500x350x340
BA20	508	69	28	12	600x335x260
BA30	762	69	28	12	840x335x260
BA40	1016	69	28	12	1090x335x260

Dimension
OD	Ø 69mm
ID	Ø 28mm
Length	10" , 20" , 30" , 40 "
Removal Rating	0.1 , 0.22 , 0.45 , 1 , 3 , 5 , 10 , 20 , 50 µm
End Cap Type	DOE , 213 , 222 , 226 , Flat , Fin
Material of Constructions
Filter Media	Polyethersulfone (PES) Membrane
Support	Polypropylene (PP)
Cage	Polypropylene (PP)
Core	Polypropylene (PP) , SS
End cap	Polypropylene (PP)
Sealing	Silicone , EPDM , NBR , Viton , Teflon , E-FKM
Performance
Max. Operating Temperature	80ºC
Max. Operating DP	4 bar@ 21ºC
	2.4 bar@ 80ºC
