Globe Double Chamber Adjustable Pressure Control Regulating Reducing Valve (Yx741X)

Product Description

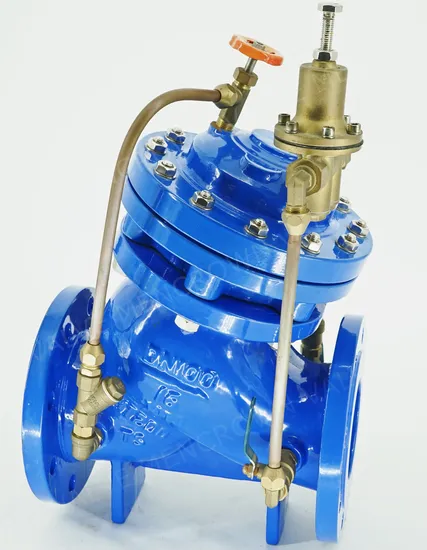

Adjustable Pressure Reducing Valve
Model No. YX741X
Δ The KANFAR model YX741X adjustable pressure reducing valve is popularly used in pipeline system of high buildings, mining industry, factories, pharmaceuticals and foodstuff etc., functions to reduce high upstream pressure to maintain precise stable downstream pressure.
Δ To control a fixed outlet pressure of valve, not to be affected by the changing of inlet pressure and flow, to have an dependable decompression effect. The precise and steady outlet pressure can be obtained by only adjusting the overhead bolt of the pilot valve.
SIZE: DN50~DN1800
Pressure Grade: PN10 (Range of Adjustment 0.1~0.8Mpa)
PN16 (Range of Adjustment 0.2~1.4Mpa)
PN25 (Range of Adjustment 0.3~2.0Mpa)
We can do higher rating as per customer request.

Valve Body	Connect Mode	Strength Test	Seal Test	Temperature Applicable	Applicable Medium
Y- type/ Globe type/ Double chambered	Flange	1.5 times of Nominal Pressure	1.1 times of Nominal Pressure	≤80ºC	Water, Oil etc

Medium applicable	Water, Oil, Gas etc.
Main material	Cast iron, Ductile iron, Carbon steel, Stainiless steel etc.
Suitable Temperature	≤80ºC
Nominal Pressure	150lb--300lb
Nominal Diameter	2"--48"
Flange Dimension	ASME B16.5, BS4504, ISO2531, ISO7005 etc
Face to Face Length	API594, BS5155, ISO5752, DIN3352 etc

Piston type
