High Speed Automatic Embossing Color-Printing Paper Napkin Making Machine

Product Description

High Speed Automatic Embossing Color-printing Paper Napkin Making Machine
Feature and Function
High quality.
High cost-effective.
Sincerely to every customer.
PRODUCTION DESCRIPTION

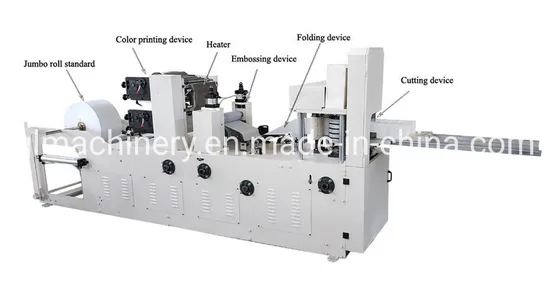

GL-B type printing and embossing napkin folder is printing all kinds of colorful pattern and artistic design on the desired slitting width, then by embossing, folding and cutting to be the square or rectangular napkin paper.
1, The color printing system uses the professional colour printing anilox ink roller, makes the printing effect more exquisite.
2, The raw paper is getting into the polishing device and after polished it will be sent to embossing device.Between the raw paper and polishing, embossing, both has the tensioning device.
3, Embossing device could equip automatic heating constant temperature heating device.
4, Equipped with frequency conversion speed adjustment according to customer.
5, Equipped with same speed's belt and gear-box transmission according to required.

Model	180-400
Finished Paper Size	180*180mm - 400*400mm (other could be order)
Folded Size	90*90mm - 200*200mm (other could be order)
Raw Paper O.D	≤Φ 1100mm
Raw Paper I.D	76.2mm (other please clarify)
Folding Speed	Normal speed 500~600pc/min without printing, 400-450pc/min with printing.
Printing Type	Flexography printing
Printing Ink	Water Solubility Ink
Printing Color	Single Color or Double color
Printing Plate Material	Aniline Plate
Embossing Bottom Roller	Steel roller, felted roller, rubber roller, wool roller
Calendering	Steel to rubber, steel to steel
Counting System	Electric counting
Power	Frequency adjustment, stepless speed adjustment 2.5-4kw
Transmission System	Timing belt, gearbox
Outer Size	4150x800x1600mm
Net Weight	1500kgs
Dryer	Hot wind dryer
Folding	According to customer (1/2, 1/4, 1/8)
Automatic Jumbo Roll Loading	To be ordered

OUR SERVICE
Greatland has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly.Greatland will try best to solve the problems from the customer. Within the quality guarantee, Greatland settle the problems on site.
ABOUT US
GLM is specialized in different kinds of PAPER CONVERTING MACHINERY with mature technology, mainly for tissue paper and packing paper, such as toilet paper/kitchen towel rewinder, napkin paper folding machine, facial tissue/hand towel folding machine and paper slitting rewinder, etc. Our products have been exported to many countries with good feedback from our clients.
F&Q
Q.:Are you a factory or trading company?
A.:We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end.Fully check and test takes before shipment.
Q.:Where is your factory located?How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly.We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.:One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
