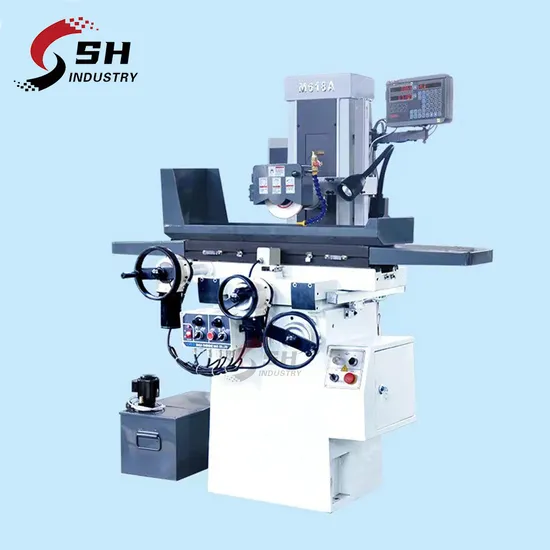

Auto-Feed Electric Surface Grinder Machine MD618A MD820 MD1022 Precision Grinder Machine with Price

Auto-Feed Electric Surface Grinder Machine MD618A MD820 MD1022 Precision Grinder Machine with Price

US$3,000.00-6,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
MD618A MD820 MD1022
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Auto-Feed Electric Surface Grinder Machine MD618A
Worktable Size (L * W)
460/180
Max. Travel of TableTmm
500*190
Table T Slot
1*14
Grinding Wheel Speed
50
Continuous
300
Transport Package
Plywoiod Case
Trademark
Shenghuan
Origin
China
HS Code
8460199000
Production Capacity
200

Packaging & Delivery

Package Size
155.00cm * 115.00cm * 159.00cm
Package Gross Weight
667.000kg

Product Description

Auto-Feed Electric Surface Grinder Machine MD618A MD820 MD1022 Precision Grinder Machine with price
Product Description
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. The transverse motion of the working table can be used to realize the mechanical transmission and the manual transmission.
3. The longitudinal movement of the working table can achieve mechanical drive and manual drive.
4. Can grinding a variety of flat and complex shape, suitable for grinding without motorized feed, according to the user needs to be equipped with permanent magnetic sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Main technical specifications:
Specifications Units MD618A MD820 MD1022
workbench Worktable size (L * W) mm 460×180 480×200 540×250
Max. travel of table mm 500×190 530×220 560×260
Table T slot (slot number x slot width) mm 1×14 1×14 1×14
Grinding head The grinding wheel size (o. d * w * i. d.) mm φ180×13×Φ31.75 φ200×20×Φ31.75 φ200×20×Φ31.75
Distance spindle center line to working table mm 335 440 420
Grinding wheel speed 50HZ r/min 2850 2850 2850
60HZ r/min 3440 3440 3360
The amount of feed Table longitudinal (left and right) speed m/min 3-20 3-20 3-20
Transverse (front and rear) feed handwheel feed Continuous (stepless) mm/min 300 300 400
Intermittent (stepless) mm/min 0-5 0-5 0-5
Handwheel per turn mm 2.5 2.5 4.0
Handwheel per lattice mm 0.02 0.02 0.02
The vertical (up and down) feed handwheel feed Handwheel per turn mm 1.25 1.25 1.25
Handwheel per lattice mm 0.01 0.01 0.01
Reversing feeder X- feeder output speed Total input power W 150 150 150
X- feeder output speed r/min 0-225 0-225 0-225
X- feeder size mm 280×130×120 280×130×120 280×130×120
Y- feeder output speed r/min 0-120 0-120 0-120
Y- feeder size mm 280×130×120 280×130×120 280×130×120
Motor power Spindle motor kw 1.1 1.1 1.5
Cooling motor W 40 40 40
working accuracy The process surface of the base level of the parallel degree mm 300:0.005 300:0.005 300:0.005
Surface roughness μm Ra0.32 Ra0.32 Ra0.32
Machine weight Net weight kg 667 767 880
Gross weight kg 767 867 980
External size (L * w * h) mm 1550x1150x1590 1680x1140x1760 1680x1140x1760
Packing size (L * w * h) mm 1000x1150x1760 1140x1250x1940 1200x1400x1940

Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
