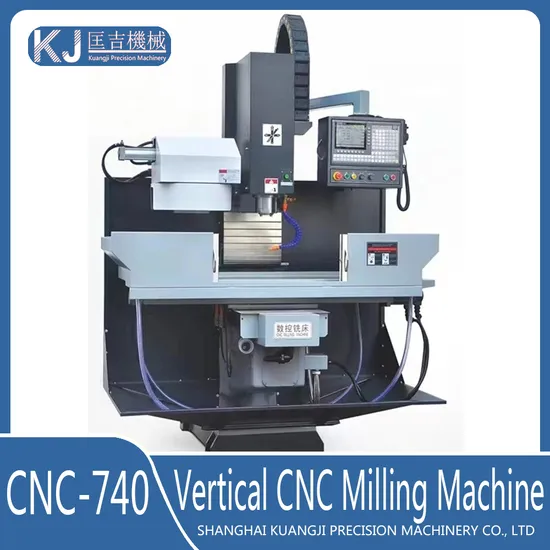

X Axis Travel450mm 4 Axis CNC Machine Small Machining Center Xh7126 Vertical
| US$9,722.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CNC-740
Type
Tool Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Turret Type
Milling Cutter Structure
Integral
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Normal Precision
Certification
CE
Condition
New
X Axis Travel
450mm
Z Axis Travel
450mm
Main Power
3.7kw
Machine Dimension
2100X1850X2250mm
Worktable Size
800X260mm
Specification
1900*1650*2650
Trademark
Kuangji
Origin
Shanghai
Production Capacity
150
Product Description
| technical parameters | unit | parameter |
| X-axis travel (table moving left and right) | mm | 1050 |
| Y-axis travel (table moving forward and backward) | mm | 340 |
| Z-axis travel 1 (servo drive) | mm | 400 |
| Z-axis stroke 2 (manual - lifting platform) | mm | 100 |
| Distance from spindle nose to work surface | mm | 120~500 |
Working table size | mm | 1470*320 |
| Maximum load of workbench | kg | 300 |
| T-slot size (slot width × number of slots) | mm | 16×3 |
| Maximum spindle speed | rpm | 8000 |
| spindle taper | BT | BT40 |
| Fast feed speed (X/Y/Z) | m/min | 10/10/10 |
| Main motor power | Kw | 3.75 |
| Machine size | mm | 1900×1650×2650 |
| Machine weight | kg | 1600 |
| positional accuracy | mm | ±0.005/300 |
| numerical control system | Taiwan SYNTEC |
