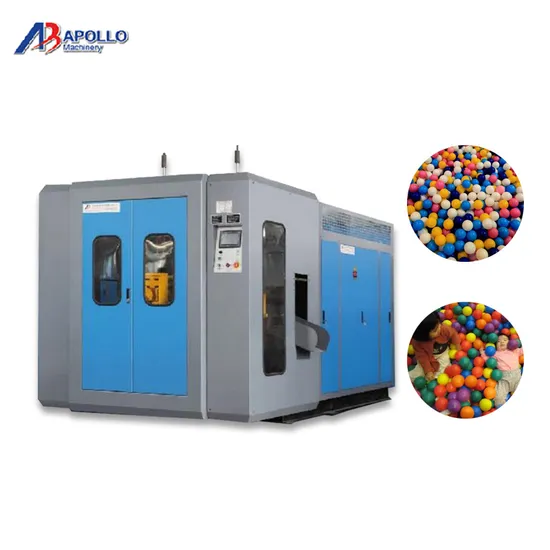

PP Plastic Ocean Ball Sea Balls Blow Molding Machine

Product Description

Product Description
Plastic blow moulding machine:
ABLB65 series full automatic blow molding machine with a auto-deflashing unit. It helps you save labor cost at 200%. A wide variety of materials can be used for this machine, which specialize in making various oil barrels and related bottles not over 2L. The clamping system is a high-precision single-station linear guide, extrusion system use a hard gear and inverter imported from Japan.
The die head system adopt central-incoming extrusion die made of special steel to ensure the quality of the products. Imported hydraulic valve and seal valve with proportional control valve. Control system consists of PLC and human machine interface imported from Japan.
The main technical parameter of this machine:

Max. Product volume	2 liters
Dry cycle	1000pc/h
Screw diameter	65mm
Screw L/D ratio	24 L/D
Screw drive power	18.5 KW
Screw heating capacity	5-6 KW
No.of heating zone	3 zones
Output of HDPE	80 KG/H
Oil pump drive power	7.5 KW
Clamping force	65 KN
Max.size of mold	148-568mm
Mold stroke	330X370mm
Max.die diameter	160mm
Blowing pressure	0.6mpa
Air volume	0.6 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	50 L/MIN

The component of the machine:

Electronic Parts
Name	Trader
Micro Computer Control System	Japanese MITSUBISHI
Temperature Controller	Japanese MITSUBISHI
Intermediate Relay	OMRON
Contactor	Schneider from France
Electric Motor	Simens Bede
Servosystem	Delta / MEGMEET
Power supply	TAIWAN MEANWELL
Transducer	ABB
Hydraulic Parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
Air Control System
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

Company Profile
Certifications
Detailed Photos
Exhibition
Customer photo
FAQ
1. Can the machine customized only for my products?Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request. 2. How about the molds ?APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional. 3. What is the business item for this project ?a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .b. Port of Loading: SHANGHAI, CHINA.c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.d. Container needed: One 20GP container. 4. How is APOLLO after-sales service?a. InspectionBefore delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval. Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and smoothly put into operation once reach the client`s factory.b. Debugging InstructionAPOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before Tonva`s engineers arrive at the buyer`s factory, the buyer must make sure that all of equipment are put in the correct position in their factory, the raw material, power and water supply must be ready in the factory.C. User TrainingAPOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients' factory to the users, so that they could understand the machine features and could operate the machine by themselves. 5. What is the warranty period?a. APOLLO machine Main parts is one year warranty with a lifelong maintenance.b. Mould within one year or 5 millions warranty.
