Basic Info.
Transmission Rate
10/100Mbps
Connecting Medium
Twisted Pair Card
Motherboard Integrated
Separate Network Card
Frequency Range
Single Frequency
Type of Network
Gigabit Ethernet
Transport Package
Unit Carton Size: 160mm*1260mm*70mm
Specification
CE/EMC, CE/LVD, FCC Certification
Origin
Dongguan Guangdong China
Production Capacity
500PCS Per Month
Product Description

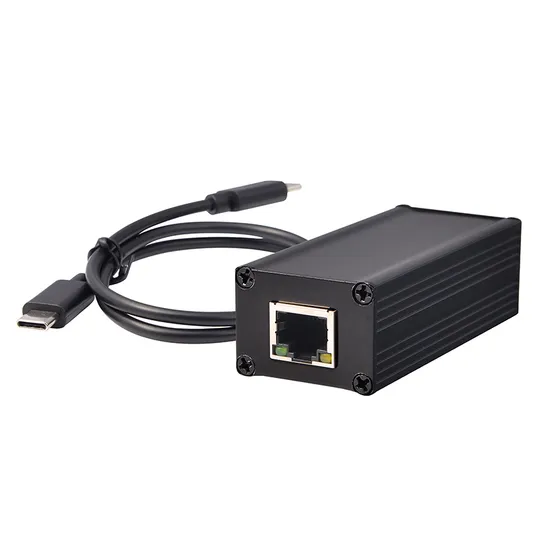

POE to type C network adapter
802.3af/at compatible
Overview:
TS925C is a 10/100Mbps isolated POE to Type-C network adapter which compliant with IEEE802.3af/at standard.
Charging Mobile phone/tablet while surfing the Internet, drive free plug and play
Body Size:78*25*35mm.
Standard isolation transformer 37~57V input.
POE protocol:IEEE802.3af /at
Transmission rate:10/100Mbps
Power supply pins:12+/36-; 45+,78-. Data pins(1,2)+/(3,6),(4,5)/(7,8)
POE power output:5V/9V adaptive max 25w.
Isolation voltage:1500V
Power output:Type-c male
PD3.0 standard fast charge, USB2.0 network.
Support android, harmony OS, IOS system.
Aluminum alloy case, elegant appearance, better heat dissipation Picture and size(mm):
Electrical parameters:
| Voltage input | Active POE 802.3af/at |
| Parameters | Minimum | Typical | Max |
| V-input | 37Vdc | 52Vdc | 57Vdc |
| Output | 5V 3A | 9V 2A | 9V 2.5A |
Electrical properties (Ta=25ºC)
| Item | | Parameter | Unit |
| environment: |
| Work temp. | | -10~70 | ºC |
Storage temp. | | -30~85 | ºC |
| | -30~80 | ºC |
| | -25~75 | ºC |
| Storage humidity | | 5~95 | RH |
| Protection circuit |
| Maximum input voltage | | 57.0 | V |
| Minimum input voltage | | 37.0 | V |
| Discharge protection current | | 3 | A |
| Conversion circuit: |
| Maximum output current | | 5V 3A/9V 2.5A | |
| 2(typical) | |
| Conversion efficiency | | Typ. ≥90% | |
| transformer | | 1500 | V |
| | | | | |
