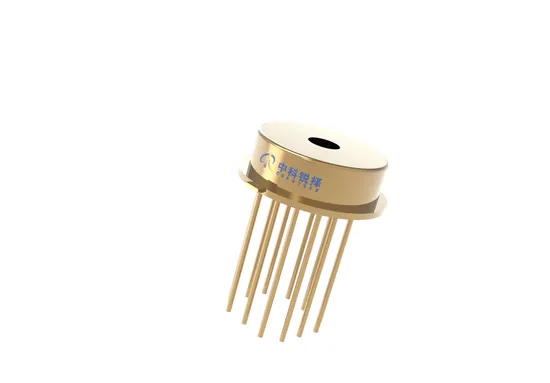

200um InGaAs APD Module With Preamplifier
CR200AH-1550-100M-00
The CR200AH-1550-100M-00 includes a 200um InGaAs Avalanche Photodiode with a hybrid preamplifier for the use in high speed, ultra-low light detection, in laser range finding, LIDAR and free space communication.Features
Built in 200um InGaAs+TIA
High sensitivity:≥400kV/W
High bandwidth:100Mhz
Wavelength range:1100~1700nm
Low noise and high reliability
TO8 package with flat window
Enhanced overload protection
Applications
LIDAR
Laser range finding
Free space optical communication (FSO)
Absolute Maximum Ratings

Parameter	Unit	Symbol	Rating
Reverse breakdown voltage	V	V R	VBR
Operating temperature	ºC	T C	-40~+85
Storage temperature	ºC	T STG	-55~+100
Maximum optical input power	mW	P in	100
Module mains voltage	V	Vcc/V EE	±5
Power dissipation	mW	Pw	250
Soldering temperature(time)	ºC	-	300(10s)

Optical/Electrical Characteristics (T=25ºC,unless otherwise stated)

Parameter	Symbol	Value			Unit	Test conditions
		Min	Typ	Max
Response Spectrum	λ	1100~1700			nm
Active Diameter	D		200		um
Reverse breakdown voltage	VBR	30		70	V
Operating voltage	VR	VR-3			V	M=10
Responsivity	Rv	400			kV/W	M=10, 1.55um @τ=5ns
Dynamic range	DY	25			dB	M=10, 1.55um @τ=5ns
-3dB bandwidth	BW		100		Mhz	M=10, 1.55um @τ=100ns
Rise/Fall time	tr		3.5		ns	M=10, 1.55um @τ=100ns
Noise Equivalent Power	NEP		120		fW/√Hz	M=10 , f=100kHz, △ =1hz
Output impedance	RO		50		Ω
Output Voltage Swing	VO	0.7			V
Positive Supply Current	ICC			30	mA
Negative Supply Current	IEE			10	mA	50Ω Load
Temperature coefficient of Vop for constant gain	γ	0.12			V/ºC	-45 ~ 85ºC
Concentricity	△ D			20	um

Order information
CR200AH-1550-100M-00

CR---1-2-3-4
1 High Responsiveness Target Surface	2 Spectrum Response	3 Responsive Bandwidth	4 Customization Requirements
200AH: 0.2mm 800AH: 0.8mm 1000AH: 1.0mm 3000AH: 3.0mm …	1550: 1550nm 1064: 1064nm 940: 800~940nm …	30M: 30MHz 50M: 50MHz 70M : 70MHz 100M: 100MHz …	00:NO LN: Low noise …
