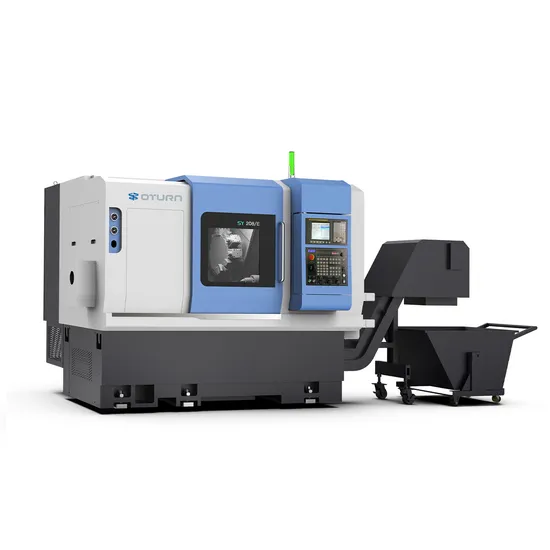

Oturncnc Heavy-Duty Horizontal Metal Slant Bed CNC Tureet Lathe with CE

Product Description

Product Description
Sy200 series CNC lathe adopts a box-shaped structure bed, which is made of high-strength HT300 cast iron. It has a dense structure, good strength, appropriate hardness, low friction coefficient, and self-lubricating properties. The overall box structure of the base bed greatly enhances the overall rigidity of the machine tool. And stability, and has the function of absorbing vibration, reducing tool loss and improving workpiece quality. It has a high performance-price ratio, the layout of the whole machine is compact and reasonable, and its high speed, high precision, high rigidity and rich configurations provide users with high efficiency and high reliability guarantee in use.
1. Main features of this machine:
1. Adopting a 30° inclined layout and an integrated structure of the bed base, which greatly improves the bending and torsional rigidity of the machine tool during operation. The high rigidity and high stability of the integrated bed base provide high precision for the entire machine. A strong guarantee.
2. The spindle unit is an independent sleeve type. The spindle system has undergone strict dynamic balance testing and has high precision, good accuracy retention, small thermal deformation, and good thermal stability. The maximum speed can reach 4500rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter, high-precision double-row roller bearing with a combined angular contact ball bearing structure. The optimal span two-point balance support design can withstand radial and axial loads, and can also provide users with high-speed precision work. It can also perform low-speed and heavy cutting, and is especially suitable for mass production of products with complex shapes, high precision requirements, and high smoothness.
3. The programmable hydraulic tailstock is a high-rigidity integral tailstock that can eliminate vibration and provide excellent stability. It can be controlled by programmable or manual buttons and uses a hydraulic cylinder to realize sleeve expansion and contraction, which is convenient, fast and reliable.
4. The standard configuration of high-performance servo turret provides users with convenient, practical and reliable processing components.
5. The feed system is directly driven by a servo motor, with good rigidity, precision and dynamic response characteristics. The machine tool is equipped with THK roller linear guide, and the maximum rapid movement speed can reach: 24m/min.
6. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
7. It adopts a Taiwan rotary chuck cylinder and is equipped with an automatic chip removal device. The chip removal method can be selected from the side or the rear direction to remove chips and separate waste residue to ensure that the inside of the water tank is clean and free of fine residue structural design. It can greatly reduce the operator's labor intensity and achieve safe and efficient production. All the above functional components can be controlled programmatically, and various special fixtures can be designed and installed according to the special requirements of users. Product Parameters

	Name	Unit	SY208/E
Travel	The largest diameter rotating bed	mm	Φ600
	Maximum processing diameter	mm	Φ500
	Max.Swing Over Cross Slide	mm	Φ300
	Maximum processing length	mm	550
	Distance Between Centers	mm	600
spindle motor Hydrocylinder chuch	Spindle nose	type	A2-6
	Maximum speed of spindle	rpm	4300
	Hydraulic Cylinde/Chuck	lnch	8″
	Spindle hole diame	mm	Φ65
	Bar diameter	mm	Φ52
	Spindle motor power	kw	22KW
X/Z axis feed	X/Z axis travel	mm	280/600
	X/Z axis rail specification	spes	35Roller
	X/Zmotor power	kw	2.9KW
	positioning accuracy	mm	±0.005
	repeat positioning accuracy	mm	±0.003
	X/Z axis moving fast	m/min	20/20
Servo Cutter	Opposite side of cutter head/Tool position	mm/pcs	420/12T
	The knife biock specifications	mm	25X25
	Circular cutter holder specification	mm	Ф40
	The adjacent tool change time	sec	0.15
Tailstock	Programmable hydraulic tail seat	/	programmable
	The biggest stroke of the tail	mm	440
	Morse Slideway	type	Mohs 5#
	Sleeve diameter	mm	Ф100
	Sleeve travel	mm	100
Mechanical Size	Machine size	mm	2620x2200x1920
	Machine Weight	kg	5000kg
other	Cutting fluid tank volume	L	150L
	Cutting water pump	kw	0.75kw
	Volume of hydraulic unit box	L	40L
	Hydraulic oil pump motor power	kw	1.5kw
	Volume of lubricating oil tank	L	2L
	Auto lube pump motor power	W	50W
	Cooling water pump power	W	750W

Products Configurations

Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
