CNC Cutting and Drilling Machine
| US$42,500.00-52,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DLM-ZQ49
Application
Wood
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Rack and Pinion
Control Method
DSP Controller
Numerical Control
CNC/MNC
Processing Precision
0.09~0.1(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Spindle
9kw Air Cooling Spindle
Controller
Taiwan Control System
Motor
Servo Motor
Rail
Taiwan Linear Rail
Table
Vacuum Table
Software
Type 3 /Artcam
Dust Collector
3kw/5.5kw
Transport Package
Plywood Box
Specification
1300mm*2500mm
Trademark
DLM
Origin
China
HS Code
84609090
Production Capacity
500 Set/Year
Product Description
CNC Engraving and Cutting MachineParameters
| Parameters | DLM-ZQ49 |
| Plate processing size | 1220*2800mm |
| Running speed | 65m/mim |
| transmission | X/Y: rack and pinion Z: ball screw |
| Table design | Partitioned vacuum adsorption table |
| Spindle power | Linear type / 9KW / automatic |
| Spindle speed | 18000-24000r/min |
| Max. working speed | 20m/min |
| Working voltage | AC380/3PH/50HZ |

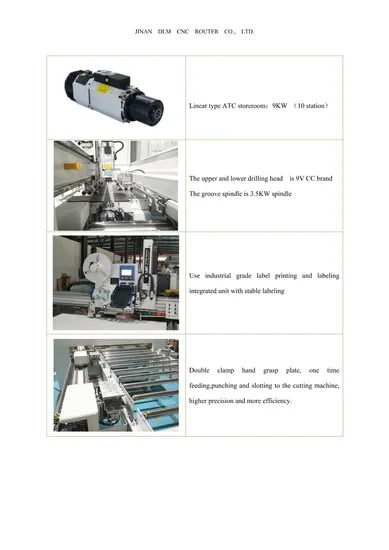

Features1)This machine is an integrated processing equipment for drilling, slotting and cutting the plate. One person operation, simple and efficient, can complete the processing of 120-140 pieces of plate a day.
2)The model added three new functions, one is the fast knife function, the punching speed is very fast, greatly improve the efficiency, one is the form sorting processing function, without the need for an import program, directly arranged in turn processing.One is the start function behind the bed, the plate on the surface behind the bed, then press the start button, start processing, no need to run back to the front operation box to press the start, save the time of running back and forth, improve the production efficiency.
Equipment installation After the equipment arrives at the user, the technical engineer of the supplier arrives at the user for installation and debugging training. Please get ready before the engineer arrives at the site. For example: unloading equipment, equipment site, power supply, computer, equipment debugging, please check and accept.
