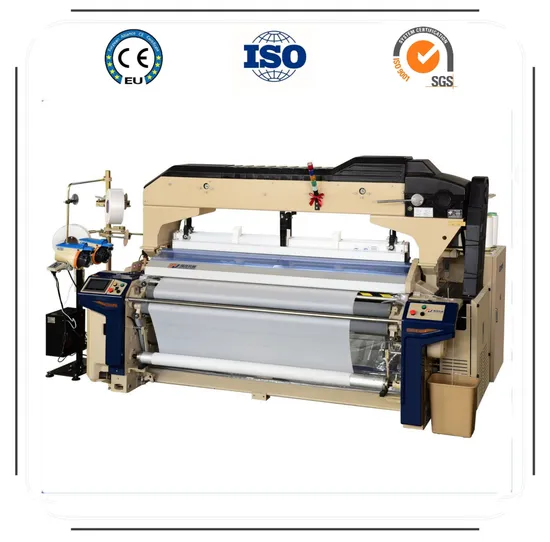

Good Quality High Speed High Efficiency Water Jet Loom Price for Heavy Fabric

Product Description

Product Description
1,HW-3873 series loom adopts 880cm*880cm*140cm wall board which reduces the center of gravity of the machine body and ensure the stable operation of the machine when it is running with high speed.
2,It adopts hollow beating shaft and hyperactivity beating system,the coiling mechanism is optimized,strengthn the middle board and back frame,reduce the vibration of loom during operation;move the reed protection cam outward and improve the waterprooof effect of the while set machine.
3,The width of loom can reach to 360cm,which is widely used for weaving light and thin fabrics such as tafetta.


Installation Instructions
Haijia Group has established an intelligent manufacturing model and an intelligent manufacturing factory in the loom industry, realizing the deep integration of high-end manufacturing and artificial intelligence, and becoming a model of intelligent manufacturing in the loom industry in the West Coast region.


Our Advantages
Haijia Machinery Group was founded in 1995, focusing on the field of shuttleless looms. The group currently has two production bases, Haijia and Century Haijia. The main products include HW series water jet looms and HA series air jet looms. In 2021, the group's production and sales volume will exceed 12,500 units, and the global market share will reach 20%.
According to the official data of China Textile Machinery Association, the market share of water jet looms produced by Haijia Group has been leading the world for many consecutive years.

Packaging & Shipping

Product Parameters

No.	Item		Description
1	Machine Model		HW-6012,improved based on TSUDOKOMA ZW-405,machine height is 900mm.
2	Useful reed space		reduce 2cm to 65 cm based on reed space.
3	Frame		Box frame type which features high anti-bending stress.
4	Drive		Direct drive with rush start motor and magnetic brake.
5			Main motor:2.2kw for crank shedding;2.8kw for cam shedding;3.7kw for dobby shedding.
6			Push button switches for start,stop,inching and reverse inching.
7	Weft insertion		From one feeder to four feeder.
8			Water pump and nozzle jetting device.
9	Shedding		6pcs shaft for crank shedding;10-12pcs for cam shedding;16pcs for dobby shedding.
10	Beating		HW-3873,solid "U"style,75D yarn,max density can reach 127 pick.
11	Let off &take up		Electronic system,improve the fabric quality.
12	Creel stand		Floor mounted,horizontal stand.
13	Temple		Top mounted,
14	Electric section		Optical feeler,induction more accurate.
15			Indicator: 4-color lamp for indicating each stopping causes.
16	Suction		Cloth drying: Slit tube type suction drying system with mechanical suction motor.
17			Electronic suction motor work together.
18	Panel board		Automatic data setting, recommended setting indication, optimim weaving condition information, automatic control, troubleshooting, self-diagnosis function operating data indication, maintenance data condition,7" touch screen.
Accessories
1	Heald Frame		6pcs for crank sheddding;10pcs for cam shedding;16pcs for dobby shedding.
2	Beam		800mm,1.5pcs each set.
3	Cloth Roll		1.5pcs each set.
4	Reed		1.5pcs each set.
5	Heald Wires		10000pcs plastic for each set.
6	Extra parts		1000¥ each set.

After Sales Service
Haijia is committed to being the first brand of Chinese looms and striving to be a world famous brand. At present, Haijia products are mainly sold to domestic Jiangsu, Shandong, Hebei, Xi'an, Henan, Zhejiang, Anhui, Fujian, Guangdong, Sichuan, Hubei and other regions as well as major textile countries in South Asia, Southeast Asia, North Africa, America and other regions. India, Egypt, Turkey, Vietnam, Indonesia, Pakistan, Mexico, Morocco and other 18 countries around the world have successively used Haijia equipment and given high praise.
