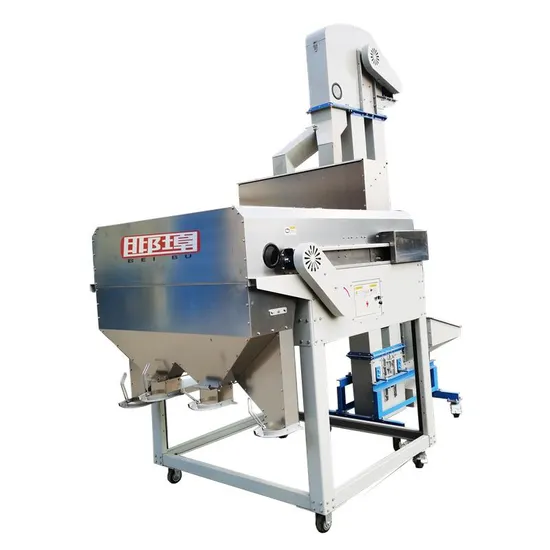

Phaseolus Vulgaris Beans 5cx-5 Magnetic Separator Seed Cleaner

Product Description

Phaseolus Vulgaris Beans 5CX-5 Magnetic Separator Seed Cleaner
Product Description
The 5CX-5 Magnetic Separator which is the fine cleaning machine which means is used after the pre-cleaning machine.Especially for the soil and clods removing which the impurities can't be removed by De-stoner.Which always use in the whole cleaning processing line after the pre-cleaning machine as the fine cleaning machine.
The machine is very popular for maize and soybean fine cleaning.
The Magnetic Separator got the bigger type of 5CX-10 Magnetic Separator,the capacity is 10t/h based on the beans.

Machine Structure
Working Principle
•5CX-5 Magnetic Separator is used to separate metals or clods from grains or seeds,the raw material will deliver to the magnetic separator by elevator,grains mixed with metals or clods go through a closed strong magnetic field with appropriate speed.Due to the different attraction strength of the magnetic field,metal,soil and clods will be separate from the grain.
Cleaning Result

Features
Japan bearing
Stainless steel surface
Wide magnetic surface design 1300mm and 1500mm.
Sand blasting appearance protecting from rusting and water
The key components are 304 stainless steel structure, which used for food grade cleaning .
It is equipped with the most advanced frequency converter . It is can adjust the belt speed to suitable for different types of materials .The Magnetic field strength of the magnetic roller is more than 18000 Gauss, which can remove all the magnetic material from the beans and other material .
Detailed Photos
Machine Advantages
Easy to operate with high performance .
High Purity :99.9% purity especially for cleaning sesame and mung beans
High quality motor for seeds cleaning machine, high quality Japan bearing .
5-10 Ton per hour cleaning capacity for cleaning different seeds and clean grains.
Non broken low speed slope bucket elevator without any damage for the seeds and grains.
Product Parameters

Model	5CX-5	5CX-10
Width of the magnetic surface	1300mm	1300mm X 2
Power(kw)	0.75kw	1.5kw
Capacity(t/h)	5t/h	10t/h
Weight(kg)	650kg	1000kg
Overall Size L×W×H(mm)	1800mm*1800mm*2000mm	1800*1800mm*2400mm
Voltage	380V,50HZ	380V,50HZ

Machine Loading Picture
Installation Warehouse
