Direct Shipping Label Thermal Barcode Printer
| US$160.00 | 2 Pieces (MOQ) |
Basic Info.
Automatic Two-sided Printing
Single Side
Supply Paper Mode
Auto Feeding
Interface Type
USB
Network Function
Alternative
Style
Black and White
Consumable Type
Ink Ribbon
Max. Paper Size
4 Inches Max Width
Character Structure
72 Bytes
Defition
300dpi
Max Width
4 Inches
Max Speed
5 Inches
Feature
Single Monochrome Color Print
Suits Material
Garment Tag, Direct Paper, Care Label etc
Color
Black
Material
Plastic
HS Cod
8443321900
Transport Package
Carton Packed Outside, Wrap with Film
Specification
45*31*26
Trademark
NO
Origin
China
HS Code
8443321900
Production Capacity
1000PCS
Product Description

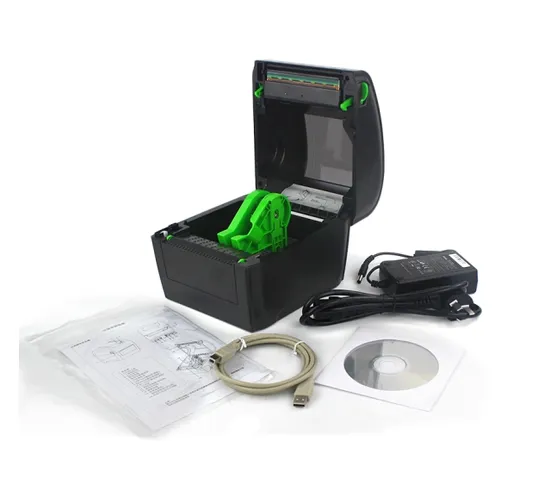

adhesive sticker label 4"6" thermal printing H500E express waybill shipping label printerH500E thermal transfer barcode printer
(Direct thermal / thermal sensitive printer)
Automatically peelling off direct thermal label printer
1. Double motors design
2. Print speed can reach to 127mm/sec
3. Ribbon capacity 300m, 25.4mm ribbon core (outside)
4. Ribbon instructure module design
5. Super large CPU capacity 4MB Flash, 8MB SDRAM
6. with Micro SD card slot.
7. USB 2.0 standard communication interface
8. Humanalized high grade printer language TSPL-EZ tm, Instruciton set support Eltron r and Zebra R.
9. Include with label sticker editor software and windows driver programme.
| Printer model | XP H500B | H500E(300DPI) | |
| Printing method: | direct thermal printing/ thermal sensitive | ||
| printing resolution: | 203dpi 8 dots/ mm ( other 300dpi) | ||
| pirnt width: | 108mm | ||
| print speed: | 127mm ( 5") | ||
| Most print length: | 2286mm (90") | ||
| memory: | 4MB FLASH RAM, 8MB SDRAM / Micro SD Flash reader can extend to 4GB. | ||
| Interface | USB 2.0 (standard )/ serial port (optional) / parallel (optional)/ network (optional) bluetooth (optional) / wirelss wifi(optional)/TFcard(alternative) | ||
| Power supply: | Circumscribed general switch power supply Imput: AC 100-240V , 1.8 A 50-60HZ output: DC 24v 2.5A , 60W | ||
| Operation switch, button , LED | Power off switch, feed, LED light ( three color) red purple, blue | ||
| Sessor | Black mark ( reflective location can be adjustable) Printer head open sensor gap distance sensing Ribbon end sensing | ||
| In-built typeface | 8 kinds bitmap typeface/ or can use windows fonts download from Internet. | ||
| Barcodes: | 1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 2D bar code:PDF-417, Maxicode, DataMatrix, QR code, Aztec | ||
| Character enlarge/ rotary: | Horizontally and vertically can amplified 1-10 times, rotary printing ( 0°,90°,180°, 270°) | ||
| Printer Language: | TSPL ( EPL, ZPL, DPL) | ||
| Medium ( paper) type | Continuous paper, distance paper, fold , perforated tags etc | ||
| Medium width: | 25.4 mm- 118mm (1"- 4.6") | ||
| Medium thickness: | 0.06 ~ 0.254 mm (2.36 ~ 10 mil) | ||
| label roll inner core | 25.4 ~ 76.2 mm (1 "~ 3 ") | ||
| Print label length: | 10 ~ 2,286mm (0.39 " ~ 90 ") | ||
| Accessory: | > Windows label editoring software, driver and operation manual CD > quick -installation guideline > USB transmission line > Power supply line > Circumscribed Voltage automatically exhange power supply server > rewinder roller, paper fixation panel *2 | ||
| Factory: (Alternative) | 1. Built-in Ethernet server (10/100Mbps) 2. RS-232C (2400-115200 bps) communication interface, 3. Centronics communication port | ||
| Customers (alternative) | 1. Exernal hanger and 1 inch core paper roller 2. bluetooth module (RS-232C transmission interface) 3. WIFI module 4. Circumscribed external extend panel 5. Cutter | ||
| Safety regulation: | FCC,CE, CCC,CB | ||
| Weight: | 3 kg | ||
| Dimension: | 303 (D) x 238(W) x198(H)mm | ||
| working environment : | 5~40ºC (41~104°F), Humidity 25-85%RH ( uncondensed) | ||
| Storage: | -40~60ºC (-40~140°F),Humidity 10 ~ 90% ( uncondensed) | ||
| Durability: | Printer head one year/ printer head 30miles or within one year , rubber covered roller valid within 1 year. | ||
If any item be of your interests, please feel free to contact us.
Contact: layla
