92/188 110/220 Screw and Barrel for Plastic Extrusion Machine Spc Flooring Extruder Spare Parts
| US$10,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
92/188
Standard
GB
Technics
Push
Material
38CrMoAl
Screw Diameter
92/ 188 ; 110/ 220
Number of Screw
2
Screw Rotating Direction
Converse Direction
Transport Package
Wooden Box
Specification
2900*500*550mm
Trademark
ROMEROCA
Origin
China
HS Code
847790
Production Capacity
10 Sets/ Month
Packaging & Delivery
Package Size
1500.00cm * 320.00cm * 480.00cm
Package Gross Weight
1200.000kg
Product Description

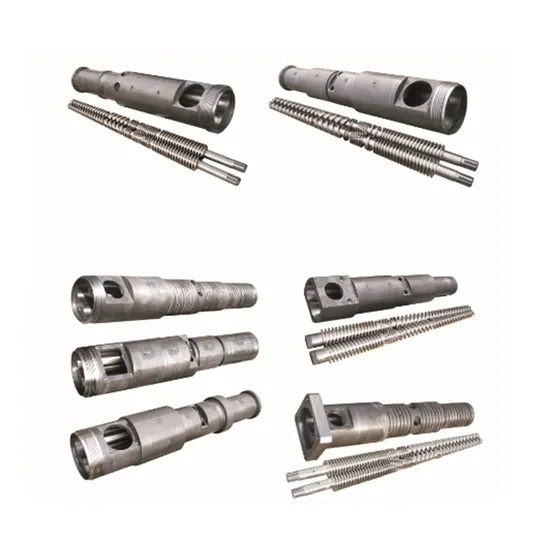

Screw & Barrel for SPC flooring Extrusion MachineScrew & Barrel is consumable spare parts of Extruder machine.
We supply Screw & Barrel matched for all types of extruder, Specification:
45/90, 45/100, 50/105, 51/105, 55/110, 55/120, 58/124, 60/125, 65/120, 65/132, 68/143, 70/135, 70/140, 75/150, 80/143, 80/156, 92/188, 105/216
The above are our standard specifications, we can customize according to customers' requirements.
The compression ratio of screws can be designed according to different raw material and products.
Material of Screw and Barrel:
| Raw Material | The Finished Product Processing Requirements |
| 38CrMoAlA, SACM645, 42CrMo | Nitriding Treatment |
| 42CrMo, AISI 4140 | Chrome Plating Hardness Layer |
| 4Cr5MoSiV1, SKD-61, SKD-11 | Spraying Bimetal Alloy Layer And Nitriding Treatment |
| HPM38, SI36, SUS440, 9Cr18MoV | Stainless Steel(Iron), High Frequency Quenching |
| GHII3 | Nature Harden After High Temperature |
Parameters Details of 92/188 Screw & Barrel:
| 1 | Screw Diameter | 92/188 |
| 2 | Screw Hardness | HV760 |
| 3 | Barrel hardness | HV940 |
| 4 | Material | 38CrMoAl |
| 5 | Thicknessof screw Nitriding layer | 0.4-0.6 |
| 6 | Thicknessof Barrel Nitriding layer | 0.4-0.6 |
| 7 | Number of Screw | 2 |
| 8 | Screw Rotating Direction | Converse Direction |
| 9 | Barrel Heating | 5 |
| 10 | Heating power | 60KW |
| 11 | BarrelCooling | 2.2KW |
| 12 | Feeding mode | Automatic Forced Convey |
| 13 | AC motor | 110 |
| 14 | AC transducer | TECO/ABB |
| 15 | Exhaust vacuum pump | 5.5KW |
| 16 | Hopper Material | stainless steel |
| 17 | Output | 500-700kg/hr |
| 18 | Style | Horizontal fixing |
